Dosage station for pH and saline electrolysis ASIN AQUA SALT

The automatic dosing station Asin Aqua Salt is designed for operation in private and hydro massage pools with a volume of up to 90 m³. The disinfection system operates on the basis of salt water electrolysis, has a fast control function, and has high power.

Add to Wish List

Choose the necessary configuration

In stock
In stock
SKU
A133001
£3,427.00
In stock
SKU
A133001
Secure Payment
Enter a value ...
inc VAT
Product code

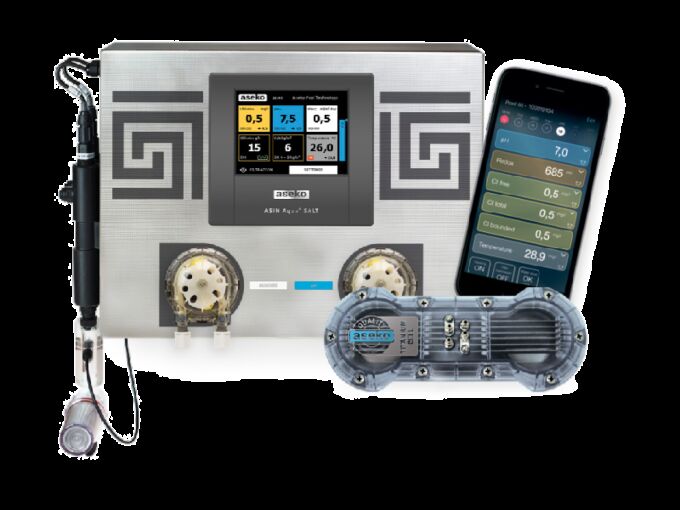

Dosing Station Asin Aqua Salt

The station can be connected to the EXT touch display and a mobile application can be installed for remote control and management. The dosing station housing is made of stainless steel with built-in peristaltic pumps and a salt meter that measures the concentration of salt in the water.

The main functions of the station include: water heating control, water level control, chlorine measurement with a CLF membrane probe, pH level adjustment, automatic filter flushing, pump timer.

Asin Aqua Salt can be used for private or small commercial pools with a water volume of up to 90 m3. The system automatically controls the chlorine and pH levels, adds the necessary amount of chemicals to maintain water purity in the pool.

Chlorine Control and Dosing

Asin Aqua Salt provides highly effective water disinfection in public and private pools. Precise measurement of chlorine content in the pool water is achieved through a free chlorine sensor combined with digital technologies. It is suitable for enclosed indoor pools up to 90 m3 or outdoor pools up to 50 m3.

pH Control and Dosing

The automatic station is adjusted for dosing pH minus or pH plus. Precise measurement using a pH sensor combined with the digital intelligence of the system allows for controlling the set pH level of circulating water in the pool in all operating modes of the pool and in various environmental conditions.



Daily Algaecide Dosing

Asin Aqua Salt can dose a small amount of algaecide in both open and closed pools. Regular addition of algaecide prevents the growth of all types of algae, bloom, and bacteria.

Asin Aqua Salt has everything needed to set up the dosing system (except for the pool chemicals and additional tanks).

  • Dosing System Asin Aqua
  • Generation cell (electrode)
  • Salinity measurement unit
  • Redox or chlorine sensor
  • pH probe
  • 2 dosing valves
  • 2 tube levers
  • 2 connecting valves
  • Pool testing kit (pH and chlorine)
  • Tube cutting knife
  • Plastic tube
  • Water temperature sensor

An additional remote display panel can be connected to Asin Aqua via a cable. The display has an attractive appearance. The remote display shows: the water temperature in the pool, the pH level, the level of redox potential or free chlorine.


Technical Specifications:

  • Pool Volume: up to 90 m³
  • Weight: 4.5 kg
  • Chlorine Production Rate: 13-27 g/h
  • Protection Class: IP 54
  • Voltage: 220 V
  • Package Dimensions: 175x347x500 mm
  • High-quality stainless steel casing
  • Color touch screen
  • Easy operation
  • Multilingual menu
  • Salt electrolyzer (produces chlorine)
  • 2 peristaltic pumps
  • Easy installation
  • Titanium electrodes with ruthenium-iridium coating, ensuring high efficiency and long service life
  • Extended safety features
  • Required salt concentration: 4 kg per 1 m³
  • Water flow regulator with built-in mesh filter
  • Internet connectivity
  • Thermometer measures the water temperature in the pool
  • Timer for controlling the pool circulation pump
  • Additional freeze protection for the pool circulation pump
  • Additional water level control in the pool
