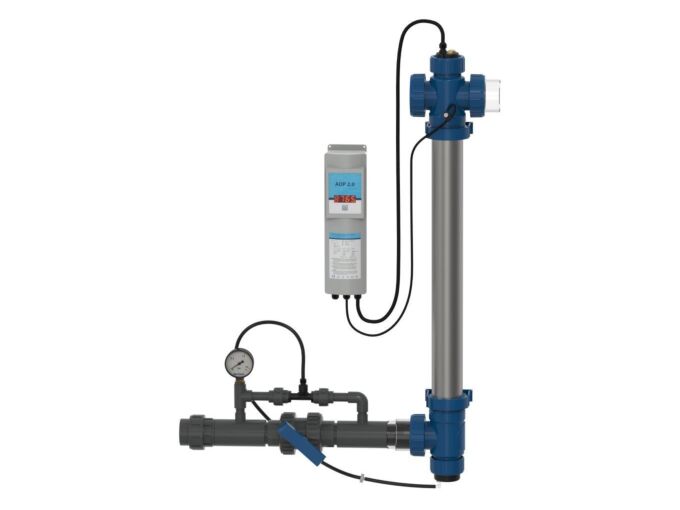

The system suitable for private pool operations -- the combination of ozone and low-pressure UV-C lamp ensures hygienically secured and clean pool water with minimal need for chlorination.

Main functions

The unit provides three types of disinfection: ozone, OH radicals, and UV-C
Up to 35% higher UV-C output due to reflection
100% efficient and stable operation
DUPLEX stainless steel housing, suitable for pools with saltwater treatment using electrolysis
Unit operation -- ozone production approx. 4,500 hours/UV-C approx. 9,000 hours
Automatic operation control -- indication of lamp replacement
Easy installation and maintenance

A special UV-C lamp generates both 254nm and 185nm radiation. The 185nm radiation converts available oxygen into ozone. The produced ozone (max. 0.6 g/h) mixes with water (via a Venturi tube) to achieve disinfection/oxidation. All remaining ozone inside the UV-C housing is further converted to OH radicals (Advanced Oxidation Process) by 254nm UV-C radiation, which have even stronger oxidation power than ozone.

Principle of AOP unit operation
Advanced Oxidation Process (AOP) is currently the best available water treatment technology. AOP uses OH radicals for water treatment, which have significantly higher oxidation potential compared to other oxidants. When gaseous ozone (1) is irradiated by UV in a reactor (2), OH radicals are generated. The lifetime of OH radicals is extremely short, and the entire treatment process takes place inside the reactor. The treated water (3) is free from OH radicals.

AOP combines the advantages of ozone and UV-C into one device. When ozone is used in combination with UV-C, so-called "hydroxyl radicals" are formed in the water, which are very effective at oxidizing water, reducing organic pollution in the water, and reducing by-products of chlorine disinfection (such as THM and chloramines).
UV-C not only efficiently disinfects water and reduces chloramines in the water but also destroys residual ozone in the water, eliminating the need for any deozonation equipment.

Technical data:

Lamp power: 75 W
Recommended flow rate (30 mJ/cm²): 18 m³/h
Max. pressure: 2 bar
Max. flow rate: 23 m³/h
Unit diameter: 70 mm
Unit length: 100 cm
Connection (input/output): 63 mm / 50 mm / 1½”
Body material: Duplex stainless steel
Power supply: 230 V AC 50/60 Hz
Max. current: 0.57 A
Lamp type: VGE T5 75W Ozone
Lamp life: 4,500 hours ozone | 9,000 hours UV-C
Ozone production: 0.6 g/h
