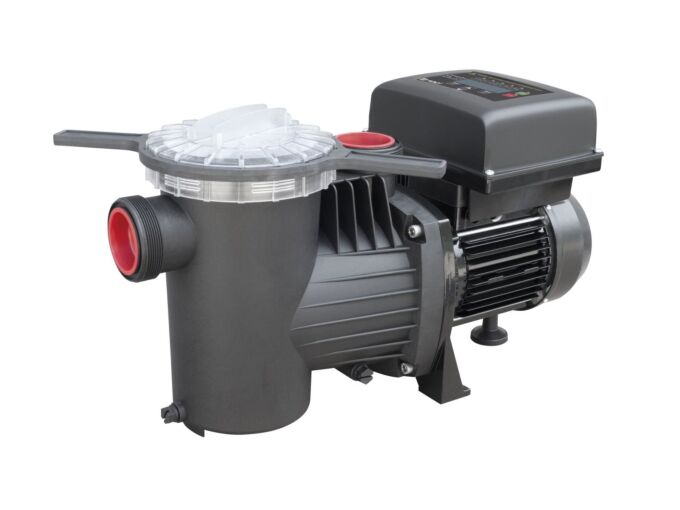

Intelligent [e] Pool drive - [e] Winner 300

New series of highly efficient pool pumps equipped with a synchronous motor with permanent magnets and variable speed control. By combining these two innovative technologies, it is possible to achieve energy savings of more than 80% in pool operation compared to traditional induction pumps.
• Specially developed software for automatic control with easy and intuitive programming via a large LCD display, no extensive technical knowledge required from the user.
• Exceptionally quiet operation (≈ 40 dB)
• Suitable for pools with a volume ranging from 15m3 to 450m3
• No need for different pumps for filtration, fountains, filter washing, or pool vacuuming
• IPM technology reduces the operating temperature of the motor, thus prolonging the lifetime of bearings and mechanical parts
• Integrated outputs for dosing system/salt chlorinator, heat pump, pool lighting, etc.

Always set the maximum pump performance according to the maximum operating pressure of the chosen filtration system.

More Information
Product type:	Smart variable speed pump
Body material:	Polypropylene
Material of sealing segment:	Carbon / ceramic
Engine coverage:	IP 55
Output	max. 2,2 kW
RPM:	600-2800 rpm
Flow, m³/h	30 m3/h
Power consumption	max. 2,45 kW
Voltage:	230 V
Engine bearings with life-lasting lubrication:	No
For sea water:	No
Suction / discharge connection - bonding:	63/63 mm
Turbine material:	Plastic
Pre-filter:	Yes
Weight:	24 kg
On palette:	0
In group packs:	1
