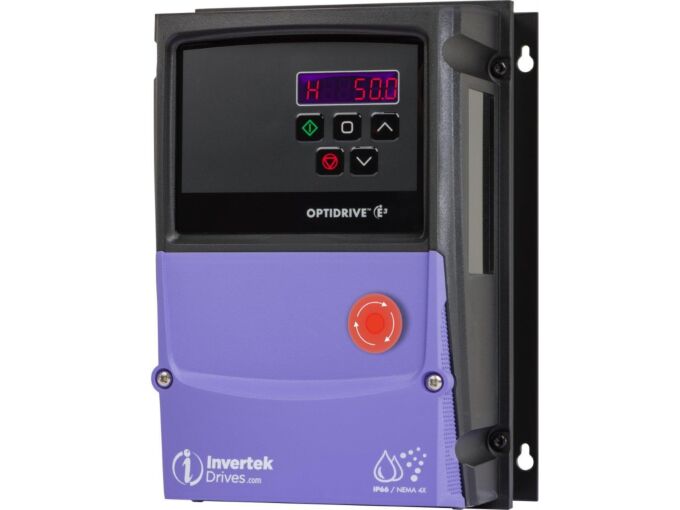

The OPTIDRIVE E3 frequency converter is available in power variants from 0.37kW to 22kW.

The following variants are available in stock:

0.75kW / 4.3A / 230V
2.2kW / 10.5A / 230V
4kW / 9.5A / 400V
5.5kW / 14A / 400V

For detailed information and prices of other power variants, please contact us at info@vagnerpool.com.

The OPTIDRIVE E3 frequency converters are designed for the most efficient use.

The OPTIDRIVE E3 provides unmatched simplicity of installation, connection, and commissioning. With these advantages, you can benefit from precise motor control and energy savings in just a few minutes.

Compatible motor types:

Key features of the OPTIDRIVE E3 IP66 unit:

Integrated C1 EMC filter
Integrated PI controller
Operating temperature up to 50°C
Integrated braking transistor
Bluetooth connectivity
Fire mode
Vector control

(1) - 2x RJ45 port. No need to use a hub

(2) - Easily accessible EMC (electromagnetic compatibility) disconnection

(3) - Very easy electrical connection thanks to a large space in the installation box and a removable cover.

Technical specifications:

Max power: 0.75 kW (1HP)
Input: 1 x 230 V
Output: 1 x 230 V
Max. current: 7 A
Dimensions (height x width x depth): 232 x 161 x 162
Weight: 2.5 kg
Mounting: 4 x M4 screw
