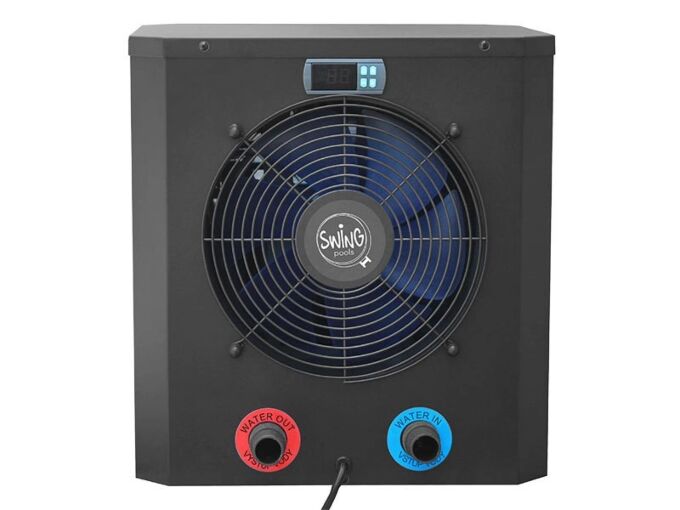

The Swing 2.5kW heat pump has several advantages:

up to 4 times more economical compared to electric heating
Simple installation, connect 32/38 mm hoses, set the desired temperature and you are ready to heat
compact and stylish design
digital display to show set values
automatic water temperature control via built-in thermostat
rubber damping blocks included in the chassis

The Swing 2.5kW heat pump is designed exclusively for heating pool water and maintaining its temperature economically. Optimal use is for swimming pools with water volume up to 9 m3. The heat pump reaches its highest efficiency at air temperatures between 15 and 25°C.

PRINCIPLE OF OPERATION OF THE HEAT PUMP

The heat pump enables heat to be extracted from the air around the pool by means of a cycle of compression and expansion of the heat transfer fluid. The air is propelled by a fan through an evaporator where it transfers its heat to the heat transfer fluid (cooling the air in the process). The heat transfer fluid is then transported by a compressor, which compresses and heats it, to the heat exchanger coils where it transfers its heat to the pool water. From the heat exchanger, the cooled fluid flows to the expansion valve where it is depressurised and rapidly cooled. This cooled fluid flows back into the evaporator where it is heated by the flowing air. The whole process is continuous and monitored by pressure and temperature sensors.

HEAT PUMP CONNECTION:
The heat pump is ready to connect 32mm or 38mm hoses, no additional reducers are needed.

The heat pump is not compatible with accessories 3BTZ0039 (38/32mm hose reducer for 2 pcs.) and 3BTZ0040 (4 pcs.).

Also suitable for circulation of salinity treated water at commonly used salt concentrations.
The heat pump is delivered fully assembled.
Pool hoses are not included.

More Information
Digital display:	No
Cooling	No
Recommended pool volume, m3	9
Defrosting	No
Voltage, V	230/50
El. expansion valve:	No
Net weight, kg	18
Net dimensions, mm	310 x 360 x 380
Operating Power, kW	0,59
Flow monitoring:	No
For sea water:	No
Pressure circuit welded with silver:	No
Recommended water flow rate, (m³/h)	2
Gross weight,kg	20
Digital control panel:	No
Max. heat output, kW	2,5 (při 28°C)
Diameter of inlet/ outlet waterpiping, mm	32 or 38
Optional touch screen	✓
Noise at 1 m, dB(A)	48
Easy to install:	No
Package dimensions, mm	380 x 450 x 450
Operating temperature	No
