Electric flow-through heaters are designed for heating water in pools and outdoor whirlpools. The operation consists of heating the flowing water by means of a heating element, and the temperature of the heated water is set by a regulating thermostat. The heating element is controlled by a contactor, which is operated by the aforementioned thermostat, and is equipped with a safety flow indicator. For this reason, a so-called large automation system is required for heating, including a 24-hour filtration programmer, a current protector (protection against dangerous touch voltage), thermal protection for the motor, contactor, and heating switch.

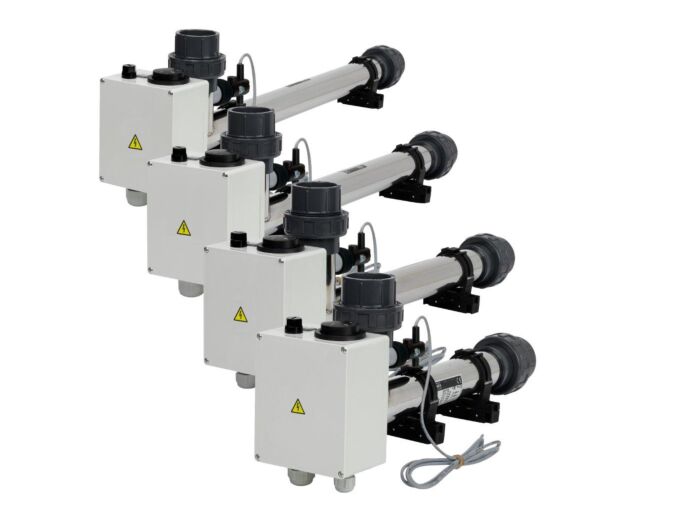

Swimming pool electric flow-through water heaters of types EOV, EOVp, EOVk, EOVTi, EOVnTi, and EOVn are specifically designed for heating swimming pool water or water in other water circuits with flow and temperature up to 40°C. Each heater must be installed in an electrical system behind a current protector. Therefore, we recommend supplementing the device with a suitable type of automatic control from VAGNER, which reliably ensures both the desired comfort and the safety of operation. The difference between EOV and EOVp lies in the use of plastic for the body shell and the use of a flow valve instead of a pressure switch as a protective element for water flow.

Each EOV electric heater:

uses electrical energy to generate thermal energy
is made of high-quality stainless steel with added TITANIUM AISI 316 (EOV type)
is made of high-quality PVC (EOVp type)
has a heating cartridge made of INCOLOY 800 stainless material with added TITANIUM, which guarantees the best quality
is 100% tested for tightness
can be connected to a water circuit via a 1.5" thread, 50 mm hose, or 50 mm adhesive
is equipped with a thermostat up to 40°C and a thermal fuse
is equipped with a pressure switch that monitors water flow (EOV type)
is equipped with 2 mounting brackets for easy installation
higher outputs up to 36 kW available upon agreement
EOVk is identical to the EOV type, only the water flow past the device is measured by a flow switch

Operating conditions:

Minimum water flow: 4 m³/h
Operating pressure: 0-3 bar
Connection: to a water circuit with a pipe diameter of 50 mm
Water quality: chloride content max. 150 mg/l
chlorine content max. 1 mg/l
pH range 7.0-7.8
