Electric flow heaters are designed for heating water in pools and hot tubs, the operation involves heating the flowing water with a heating element, the temperature of the heated water is regulated by a thermostat. The heating element is controlled by a relay, which is operated by the aforementioned thermostat, and a safety flow indicator. For this reason, a so-called large automation is required for heating - a 24-hour filtration programmer, a current protector (protection against dangerous touch voltage), thermal protection of the motor, relay, and heating switch.

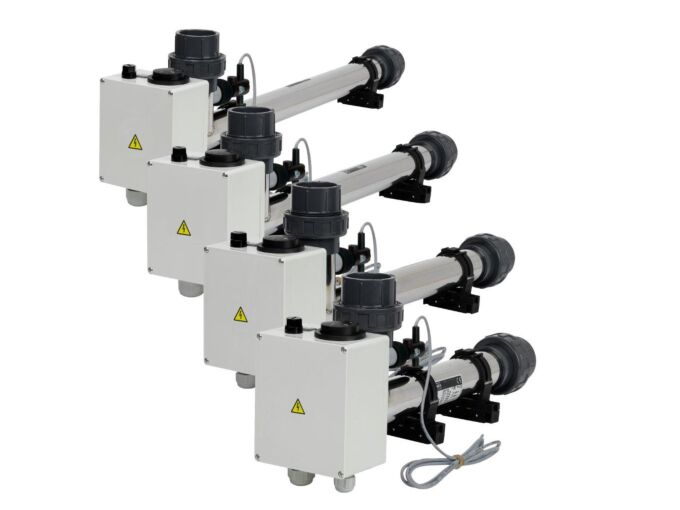

Pool electric flow heaters of the types EOV, EOVp, EOVk, EOVTi, EOVnTi, and EOVn are specially designed for heating pool water or water in other water circuits with a flow rate and temperature up to 40°C. Each heater must be installed in an electrical system behind a current protector. Therefore, we recommend supplementing the device with a suitable type of automatic control from Vágner, which reliably ensures not only the desired convenience but also safety of operation. The difference between EOV and EOVp lies in the use of plastic on the actual body covering and the use of a flow valve instead of a pressure switch as a protective element for water flow.

Each EOV electric heater:

utilizes the conversion of electrical energy into heat energy
is made of high-quality stainless steel with a high percentage of TITANIUM AISI 316 (EOV type)
is made of high-quality PVC (EOVp type)
has a heating cartridge made of stainless material INCOLOY 800 with a high percentage of TITANIUM, ensuring the best quality
is 100% tested for tightness
can be connected to a water circuit via a 1.5" thread, 50mm hose, or 50mm glue
is equipped with a thermostat up to 40°C and a thermal cut-off
is equipped with a pressure switch that monitors water flow (EOV type)
is equipped with 2 brackets for easy installation
higher outputs up to 36 kW available upon agreement
EOVk is identical to the EOV type, only the water flow through the device is monitored by a flow switch

Operating conditions:

Minimum water flow: 4 m³/h
Operating pressure: 0-3 bar
Connection: into a water circuit with a pipe diameter of 50 mm
Water quality: chloride content max. 150 mg/l
chlorine content max 1 mg/l
pH range 7.0-7.8
