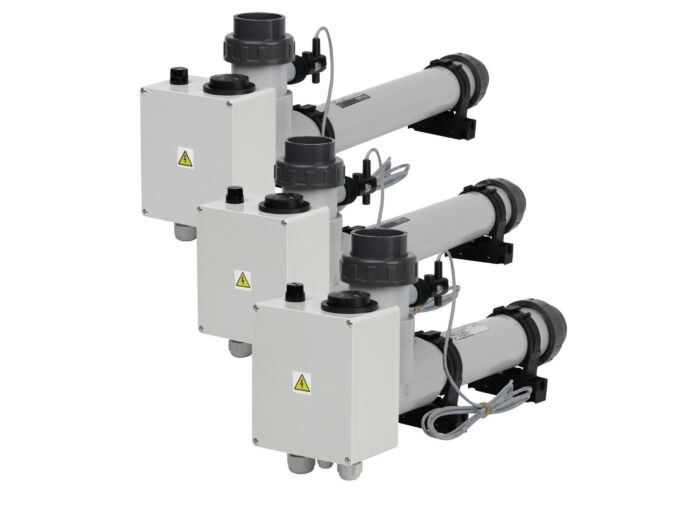

Heating EOVTi-6, 6 kW, 3 x 230 V, Titan with electric flow valve

Electric flow-through heaters are designed for heating water in pools and hot tubs. The operation consists of heating the flowing water with a heating element, and the temperature of the heated water is controlled by a regulating thermostat. The heating element is controlled by a contactor, which is operated by the aforementioned thermostat, and a safety flow indicator. For this reason, a so-called large automation is required for heating - a 24-hour filtration programmer, a current protector (protection against dangerous touch voltage), motor thermal protection, contactor, and heater switch. The entire heating system is made of stainless steel material titanium (for salty water) or plastic.

Pool electric flow-through water heaters, types EOV, EOVp, EOVk, EOVTi, EOVnTi, and EOVn, are specially designed by their construction for heating pool water or water in other water circuits with flow and temperature up to 40°C. Each heater must be installed in an electric system with a current protector. Therefore, we recommend supplementing the device with a suitable type of automatic control from the company VAGNER, which reliably ensures not only the required comfort but also safety of operation.

Electric heater EOVTi:

• Utilizes the conversion of electrical energy into heat energy
• Made of high-quality PVC
• Equipped with a TITANIUM heating cartridge. TITANIUM is the most resistant material against corrosion.
• 100% tested for tightness
• This type of heater is suitable for abnormal stress and higher chlorine concentration. It can be used in combination with any water treatment, such as electro-chemical salt chlorinators, etc.
• Equipped with a thermostat up to 40°C and a thermal safety device
• Equipped with a flow switch that monitors water flow
• Equipped with 2 brackets for easy installation

Operating conditions:

• Minimum water flow: 4 m³/h
• Operating pressure: 0-3 bar
• Connection: to a water circuit with a pipeline diameter of 50 mm
• Water quality: chloride content max. 150 mg/l
• chlorine content max 1 mg/l
• pH range 7.0-7.8
