Electric flow heaters are designed for heating water in pools and hot tubs. The operation consists of heating the flowing water with a heating element, and the temperature of the heated water is regulated by a thermostat. The heating element is switched on by a relay controlled by the aforementioned thermostat, with a safety flow indicator. For this reason, a so-called large automation is necessary for the heating - a 24-hour timer for cleaning, a current protector (protection against dangerous touch voltage), motor thermal protection, relay, and heating switch. The entire heating device is made of stainless steel or plastic.

Pool electric flow water heaters of the Heat Pool type are specially designed for heating pool water or water in other circuits with flow. Each heater must be installed in an electrical system after a current protector. We recommend complementing the device with a suitable type of automatic control from VÁGNER, which reliably ensures not only the desired comfort but also operational safety.

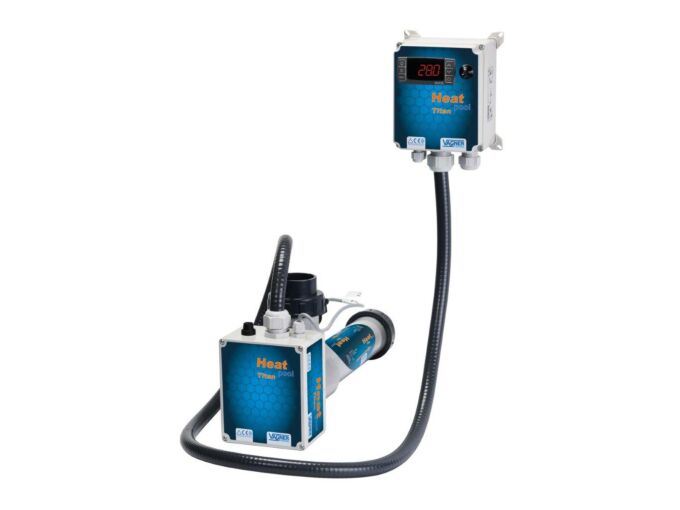

The titanium Heat Pool heater with a relay switch is equipped similarly to the EOVTi type with an electric flow switch, thermal fuse, and electronic thermostat
The thermostat display and the heating switch are located in a separate control panel, which is connected to the heating with 1.5 m of cable placed in a conduit
2 pcs of brackets for easy installation are included

Operating conditions:

Minimum water flow: 4 m³/h
Operating pressure: 0-3 bar
Connection: to a water circuit with a pipe diameter of 50 mm
Water quality: maximum chloride content 150 mg/l
maximum chlorine content 1 mg/l
pH range 7.0-7.8

More Information
Net transport weight kg	4,70 kg
Digital display:	Yes
Cooling	No
Connection	50 mm
Defrosting	No
El. expansion valve:	No
Flow monitoring:	Yes
For sea water:	No
Pressure circuit welded with silver:	No
Digital control panel:	Yes
Spiral material	Titan
Output	12 kW
Easy to install:	No
Operating temperature	No
Weight	4.665 kg
In group packs	1
On palette	0
