Electric instantaneous water heaters are designed for heating water in pools and hot tubs. The operation consists of heating the flowing water by the heating element. The temperature of the heated water is set by the regulating thermostat. The heating element is switched by a contactor controlled by the aforementioned thermostat and a safety flow indicator. For this reason, a so-called large automation is required for heating - a 24-hour programmer switchboard, a current protector (protection against dangerous touch voltage), thermal motor protection, contactor, and heater switch. The entire heating system is made of stainless steel material titanium (for saltwater) or plastic.

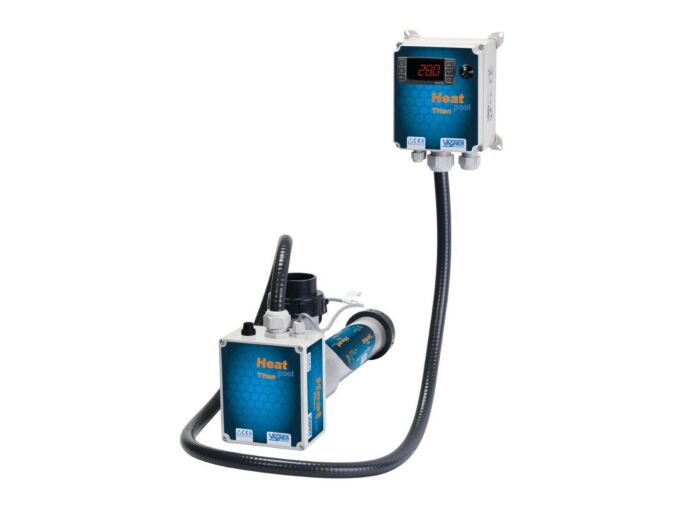

Pool electric flow-through water heaters of the Heat Pool type are specially designed for heating pool water or water in other water circuits with flow. Each heater must be installed in an electrical system behind a current protector. Therefore, we recommend supplementing the device with a suitable type of automatic control from VÁGNER company, which reliably ensures not only the required comfort but also the safety of operation.
- Titanium heater Heat Pool with a switching contactor is equipped similarly to the EOVTi type with an electric flow switch, a thermal fuse, and an electronic thermostat
- The thermostat display and the heating switch contactor are located in a separate control box, which is connected to the heater by cables with a length of 1.5 m placed in a protective sleeve
- 2 pcs of brackets for easy installation are included
- Minimum water flow: 4 m3/h
- Operating pressure: 0-3 bar
- Connection: to a water circuit with a pipe diameter: 50 mm
- Water quality: chloride content max. 150 mg/l
- chlorine content max 1 mg/l
- pH range 7.0-7.8
|El. expansion valve:
|Net weight, kg
|For sea water:
|Pressure circuit welded with silver:
|Digital control panel:
|Max. heat output, kW
|Easy to install:
|In group packs
