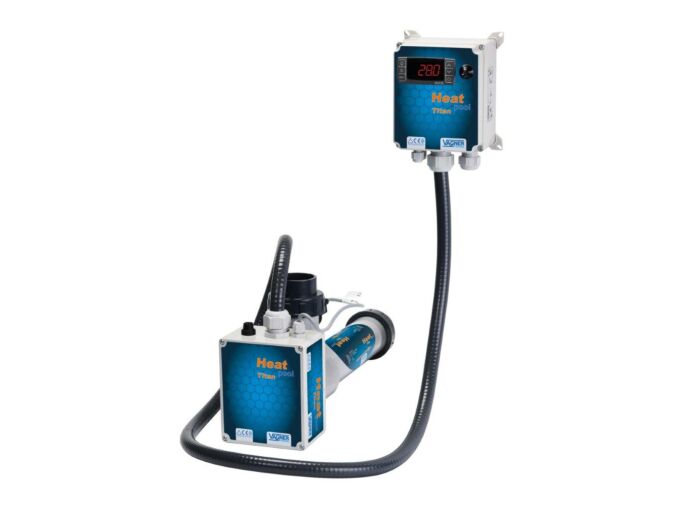

Electric flow heaters are designed for heating water in pools and hot tubs. The operation consists of heating the flowing water with a heating element, and the temperature of the heated water is regulated by a thermostat. The heating element is switched on by a contactor controlled by the aforementioned thermostat, and has a safety flow indicator. Therefore, a "big automation" is necessary for the heating - a 24-hour programmer, a current protector (protection against dangerous touch voltage), thermal protection of the motor, contactor, and heating switch. The entire heating system is made of stainless steel titanium (for saltwater) or plastic.
The Heat Pool electric flow heaters for pools are specially designed for heating pool water or water in other circuits with flow. Each heater must be installed in the electrical system behind a current protector. Therefore, it is recommended to complement the device with a suitable type of automatic control from VÁGNER, which reliably ensures not only the desired comfort but also the safety of operation.
- The titanium Heat Pool heater equipped with a switching contactor is similar to the EOVTi type, equipped with an electric flow switch, thermal fuse, and electronic thermostat
- The thermostat display and the heating switch are located in a separate control box, which is connected to the heater with its own cables, 1.5 m long, placed in a protective conduit
- 2 pcs of brackets for easy mounting are included
Operating conditions:
- Minimum water flow: 4 m3/h
- Operating pressure: 0-3 bar
- Connection: to the water circuit with a pipe diameter of 50 mm
- Water quality: maximum chloride content 150 mg/l
- chlorine content max 1 mg/l
- pH range 7.0-7.8
Net transport weight kg | 4,20 kg |
---|---|
Digital display: | Yes |
Cooling | No |
Connection | 50 mm |
Defrosting | No |
El. expansion valve: | No |
Flow monitoring: | Yes |
For sea water: | No |
Pressure circuit welded with silver: | No |
Digital control panel: | Yes |
Spiral material | Titan |
Output | 6 kW |
Easy to install: | No |
Operating temperature | No |
Weight | 4.22 kg |
In group packs | 1 |
On palette | 0 |
