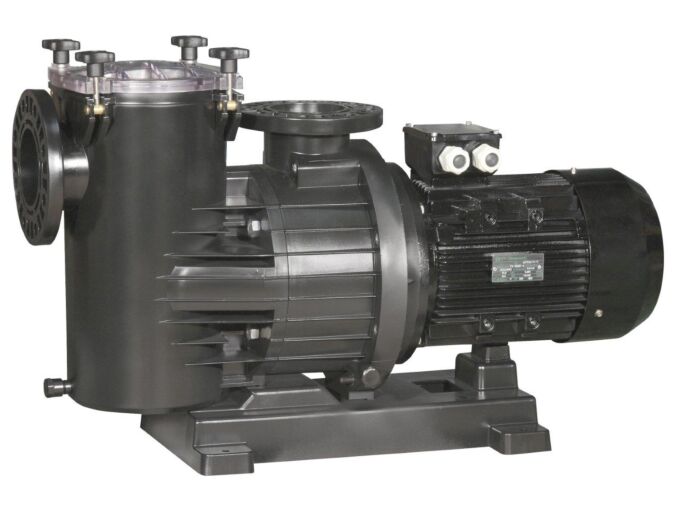

Magnus 1000 - 400V, 126 m3/h, plastic turbine 7.50 kW

Add to Wish List

Choose the necessary configuration

In stock
In stock
SKU
vp-573MAG1000
£4,321.28
In stock
SKU
vp-573MAG1000
Secure Payment
Enter a value ...
inc VAT
Product code

Magnus Pumps
• High volume self-priming pump with high capacity pre-filter, ideal for larger filtration systems
• The first robust plastic pump achieving the properties of a cast iron or bronze pump
• Noryl plastic impeller (bronze available on request)
• Pump body and diffuser made of reinforced polypropylene with glass fiber, providing exceptional durability
• Large pre-filter combined with excellent hydraulic performance ensures extremely high filtration capacity
• Transparent polycarbonate cover with four closures for easy pre-filter inspection
• Stainless steel (AISI 316) pump shaft is not in contact with the pumped water, suitable for use with salty and seawater when equipped with an AISI 316 mechanical seal
• Lifelong lubricated motor bearings for long lifespan and quiet operation - lower speed = lower noise and wear = longer lifespan compared to standard pumps
• Lower operating temperature of the motor, IP55 motor enclosure
• Connection with 110 mm diameter flanges (pipe not included)
• Each unit is tested (comes with an identification "birth" certificate with measured technical parameters, attached to the back of the manual)

More Information
Product type:Smart variable speed pump
Body material:Polypropylene
Engine coverage:IP 55
Output 7,5 kW
Output current15,8 A
RPM:1450 rpm
Flow, m³/h126 m3/h
Power consumption8,62 kW
Voltage:400/690 V
Engine bearings with life-lasting lubrication:No
For sea water:No
Suction / discharge connection - bonding:110/110 mm
Self-priming:Yes
Turbine material:Bronze
Max. work pressure:2,5 bar
for_salt_waterup to 5 g/l (<0.5%):
For salt waterabove 5 g/l (>0,5%))
Weight:76 kg
On palette:0
In group packs:1
