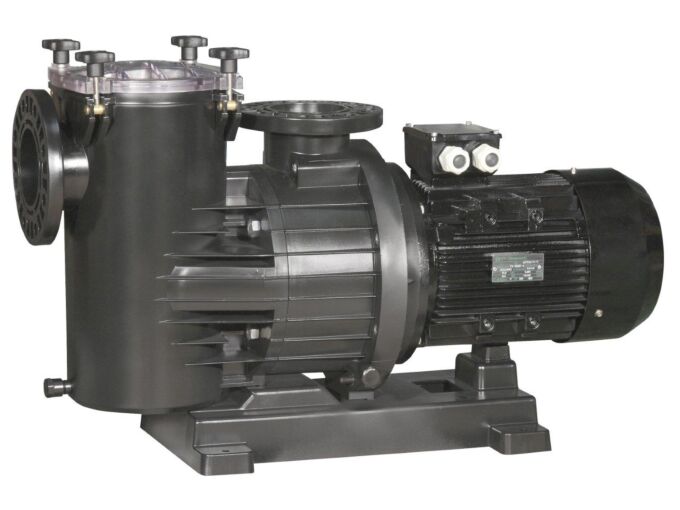

Magnus 400 - 400V, 56 m3/h, plastic turbine, 3.00 kW

Add to Wish List

Choose the necessary configuration

In stock
In stock
SKU
vp-573MAG0400
£2,637.48
In stock
SKU
vp-573MAG0400
Secure Payment
Enter a value ...
inc VAT
Product code

Magnus Pumps
• High-capacity self-priming pump with a large pre-filter, ideal for larger filtration systems
• First robust plastic pump with properties similar to cast iron or bronze pumps
• Impeller made of plastic noryl (bronze impeller available on request)
• Pump body and diffuser made of glass fiber reinforced polypropylene for exceptional durability
• Large pre-filter combined with excellent hydraulic performance ensures extremely high filtration capacity
• Transparent polycarbonate cover with four locks for easy pre-filter inspection
• Stainless steel (AISI 316) pump shaft is not in contact with the pumped water - can be used with saline and seawater when equipped with an AISI 316 mechanical seal
• Motor bearings with lifelong lubrication for long life and quiet operation - lower speed = lower noise and wear = longer lifespan compared to standard pumps
• Lower operating temperature of the motor, IP55 motor protection
• Connection with Ø 110 mm flanges (pipe not included)
• Each unit is tested (with its own "birth" certificate with measured technical data, attached to the back of the manual)

More Information
Product type:Large volume pump
Body material:Polypropylene
Engine coverage:IP 55
Output 3 kW
Output current12,5 A
RPM:1450 rpm
Flow, m³/h56 m3/h
Power consumption3,63 kW
Voltage:230/400 V
Engine bearings with life-lasting lubrication:No
For sea water:No
Suction / discharge connection - bonding:110/110 mm
Self-priming:Yes
Turbine material:Plastic
Max. work pressure:2,5 bar
for_salt_waterup to 5 g/l (<0.5%):
For salt waterabove 5 g/l (>0,5%))
Pre-filter:Yes
Weight:45 kg
On palette:1
In group packs:1
