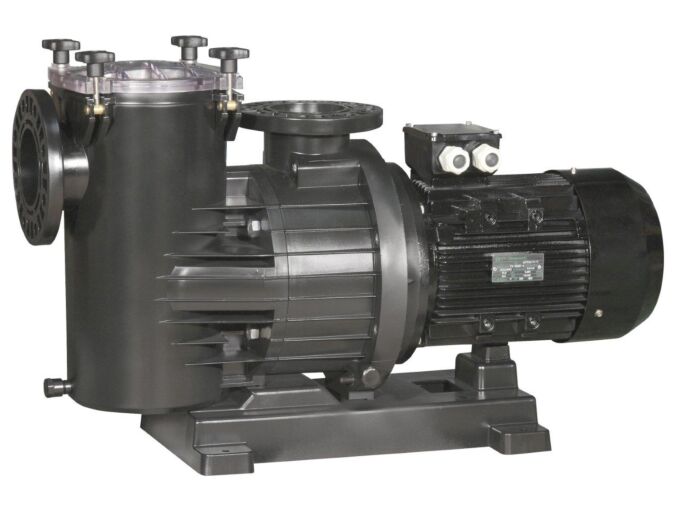

Magnus 750 - 400V, 107 m3/h, plastic turbine 5.50 kW

Add to Wish List

Choose the necessary configuration

In stock
In stock
SKU
vp-573MAG0750
£3,900.90
In stock
SKU
vp-573MAG0750
Secure Payment
Enter a value ...
inc VAT
Product code

Magnus Pumps
• High volume self-priming pump with a large capacity pre-filter, ideal for larger filtration systems
• The first robust plastic pump with the properties of a cast iron or bronze pump
• Noryl plastic impeller (bronze impeller available on request)
• The pump body and diffuser made of polypropylene reinforced with glass fiber provide exceptional durability
• The large pre-filter, along with excellent hydraulic performance, guarantees extremely high filtration capacity
• Transparent polycarbonate cover with four closures for easy pre-filter inspection
• The stainless steel (AISI 316) pump shaft is not in contact with pumped water - suitable for use with salty and seawater when fitted with an AISI 316 mechanical seal
• Motor bearings with lifetime lubrication for long life and quiet operation - lower speed = lower noise and wear = longer service life compared to standard pumps
• Lower operating temperature of the motor, IP55 motor protection
• Connection with 110 mm flanges (pipe is not included)
• Each piece is tested (has its own "birth" certificate with measured technical data, attached to the back of the manual)

More Information
Product type:High Capacity Filter Pump
Body material:Polypropylene
Engine coverage:IP 55
Output 5,5 kW
Output current12 A
RPM:1450 rpm
Flow, m³/h107 m3/h
Power consumption6,42 kW
Voltage:400/690 V
Engine bearings with life-lasting lubrication:No
For sea water:No
Suction / discharge connection - bonding:110/110 mm
Self-priming:Yes
Turbine material:Plastic
Max. work pressure:2,5 bar
for_salt_waterup to 5 g/l (<0.5%):
For salt waterabove 5 g/l (>0,5%))
Weight:66 kg
On palette:1
In group packs:0
