Ultra-violet (UV) disinfection belongs to technologies that are increasingly used to improve the treatment technologies of drinking and pool water. The disinfection principle relies on the photochemical damage to RNA and DNA, proteins, enzymes, or other biologically significant macromolecules.

The effectiveness of disinfection depends on the dose of UV radiation, the type of UV lamp used, and their arrangement with respect to the direction of flow of drinking or pool water. To select the appropriate type of UV equipment, it is necessary to determine and ensure the required dose of UV radiation, which depends on the flow rate and the quality of water in terms of its transmittance, i.e. concentration and type of dissolved and undissolved substances that affect the reflection and absorption of UV radiation.

Polychromatic vacuum UV lamp types emit UV radiation at 185-400 nm, whereby the intensity of the emitted UV energy is not dependent on temperature and can be used at different levels depending on the type of UV lamp. As a result of the different intensities of UV energy, it is possible to replace up to 12 low-pressure monochromatic UV lamps with one highly efficient UV lamp, which utilizes higher intensity radiation for a shorter period. Higher efficiency leads to a smaller size of the UV equipment and compactness.

The combination of UV radiation with other treatment technologies leads to achieving high water quality. The advantage is reduced operational requirements, saving dosing chemicals, and safe and easy operation in automatic mode. The disadvantage is the possibility of secondary contamination, so UV radiation itself is not suitable for hygiene purposes. In practice, it is combined, for example, with chlorine treatment.

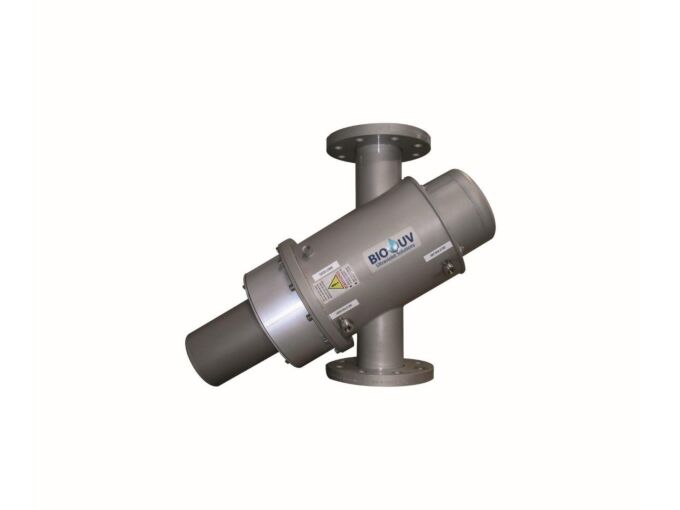

Model	Max. flow rate	Radiation intensity	Number of UV lamps: power	Connection DN

MP 034	40 m3/h	60 mJ/cm2	1 x 1 kW	DN 80

Continuous, highly efficient, and immediate disinfection
Reduction of chloramines by up to 75%
Improved organoleptic properties of water
Reactor made of corrosion-resistant materials (stainless steel 316L)
Protective quartz glass
Integrated operating hour and number of switch-on indicator
Indication of faults and state of the entire unit
No / manual / automatic wiping system
Reactor equipped with a drain valve, flow, temperature, UVC sensor, and optionally with a wiper sensor
Automatic power regulation -- extended lifespan
Lamp lifespan 8,000 - 12,000 hours
Possibility of data transfer to PC (output 4-20mV)
