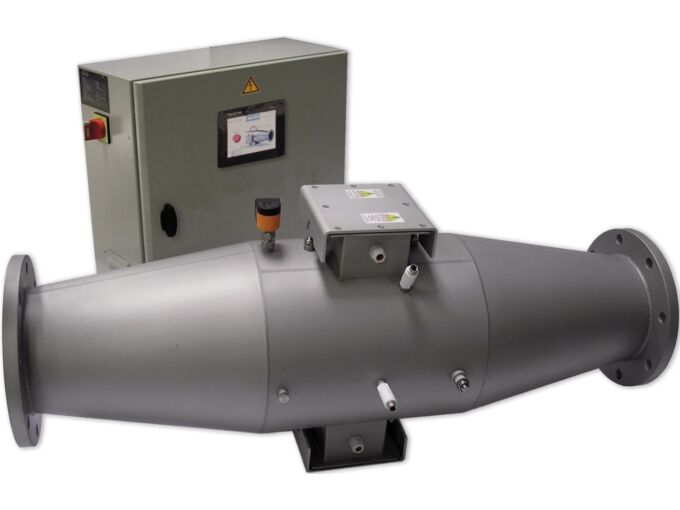

MP 140 TS - Low-pressure UV Sterilizer 3 kW, DN200

Disinfection by ultraviolet radiation is one of the technologies that is increasingly used to improve the quality of drinking and swimming pool water. The principle of disinfection involves the photochemical damage of RNA and DNA, proteins, enzymes, and other biologically important macromolecules.

The effectiveness of disinfection depends on the dose of UV radiation, the type of UV lamp used, and their arrangement with respect to the flow direction of the drinking or pool water. To select the appropriate type of UV device, it is necessary to determine and ensure the required dose of UV radiation, which depends on the flow rate and water quality in terms of its transmittance, i.e., the concentration and type of dissolved and undissolved substances that affect the reflection and absorption of UV radiation.

Polychromatic low-pressure UV lamps emit UV radiation at 185-400 nm, with the intensity of emitted UV energy not depending on the temperature and can be operated at different levels depending on the type of UV lamp. The differential intensity of the emitted UV energy enables the replacement of up to 12 low-pressure monochromatic UV lamps with one highly efficient UV lamp, which utilizes higher-intensity radiation for a shorter period. Higher efficiency leads to a reduction in the size and compactness of UV devices.

The possibility of combining UV radiation with other treatment technologies leads to the achievement of high water quality. The advantages include reduced operational requirements, savings in chemical dosing, and safe and easy operation in automatic mode. The disadvantage is the possibility of secondary contamination, so UV disinfection alone is not suitable for hygienic protection. In practice, it is therefore combined, for example, with chlorination.

• Continuous, highly efficient, and instant disinfection
• Reduction of chloramines by up to 75%
• Improved organoleptic properties of water
• Reactor made of corrosion-resistant materials (316L stainless steel)
• Protective quartz glass
• Integrated operating hours and switch-on counter
• Indication of malfunctions and the status of the entire unit
• Color touchscreen monitor
• Manual/automatic wiping system
• Reactor equipped with drain valve, flow, temperature, UVC sensor, and optionally with a wiper sensor
• Automatic power regulation - extended lifespan
• Lamp lifespan: 8,000 - 12,000 hours
• Possibility of data transfer to PC (output 4-20mV)
