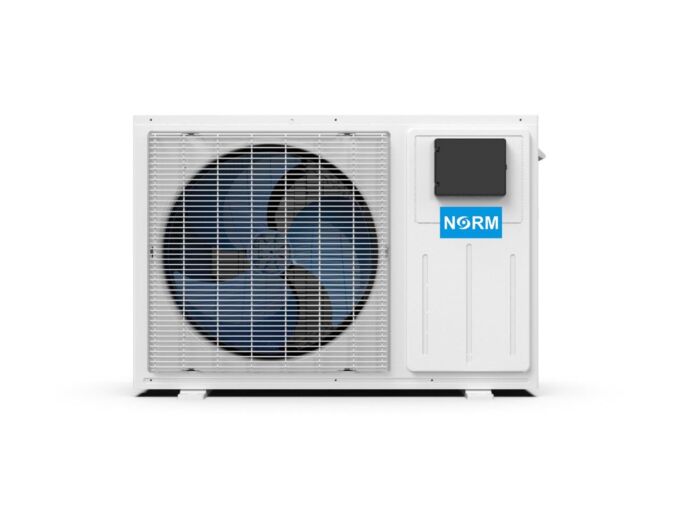

New design for NORM heat pump - instead of plastic "clock", galvanized steel was used and R32 refrigerant was used.

Pool heat pump NORM offers high energy savings compared to traditional pool heating methods. The difference lies in high energy efficiency by obtaining heat from the air.

The principle of obtaining heat from an air-to-water heat pump is the transfer of thermal energy from the air to the cooled refrigerant inside the heat pump. By compressing the refrigerant with a compressor, heat is produced, which is then used to heat the water in the pool.

Heating capacity: Air 27 °C / Water 26 °C / Humidity 80 %
Heating capacity (kW)	12.3
C.O.P.	5.3
Power input (kW)	2.33
Heating capacity: Air 24 °C / Water 26 °C / Humidity 62 %
Heating capacity (kW)	10.5
C.O.P.	4.7
Power input (kW)	2.24
Heating capacity: Air 15 °C / Water 26 °C / Humidity 70 %
Heating capacity (kW)	8.4
C.O.P.	3.7
Power input (kW)	2.27

More Information
Product type:	heat pump
Material	Plated steel
Color:	White
Heating circuit connection	12,3 kW
Digital display:	No
Cooling	Yes
Recommended pool volume, m3	< 58 m3
Connection	50 mm
Defrosting	Yes
Refrigerant used	R32
Voltage, V	230
Efficiency:	5,3 C.O.P.
For salt water	Yes, above 5 g/l (>0,5%)
El. expansion valve:	Yes
Compressor:	Rotary Built in
Net weight, kg	56 kg
Flow monitoring:	No
For sea water:	Yes
Pressure circuit welded with silver:	Yes
Recommended water flow rate, (m³/h)	4-12 m3/h
Digital control panel:	Yes
Spiral material	Titan
Output	12,3 kW
Flow	5,8 m3/h
Operating temperature	43 °C
Easy to install:	No
Operating temperature	Yes
