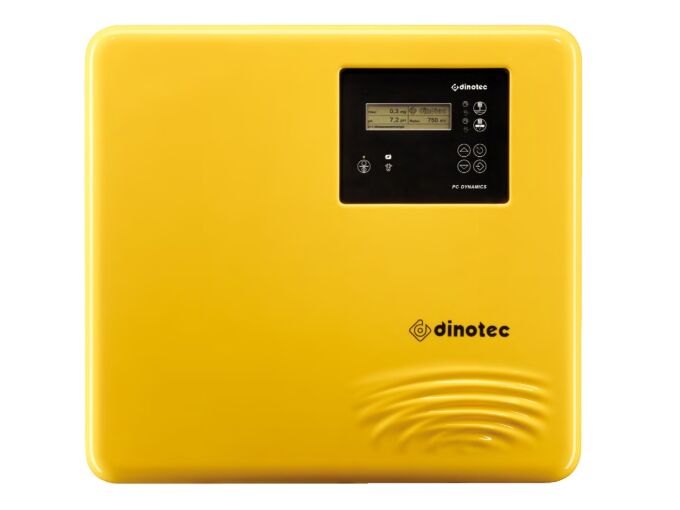

PC DYNAMICS - ORP/pH + 2x EASY

PC DYNAMICS - possibility of filter pump control and heating regulation

Easy-to-adjust multiparameter dosing device with a clear display and a measuring cell, in which the measuring probes are installed. The professional measuring system is located in a waterproof box designed for private, public, and semi-public swimming pools.

Microprocessor-controlled measuring and control unit for disinfection and pH regulation. You can choose chlorine disinfection (redox) or non-chlorine disinfection in the form of activated oxygen Poolcare (time-controlled). The system can also be equipped with an additional module and a potentiostatic probe for direct measurement of free chlorine or activated oxygen Poolcare.

View of the station without the front cover



pH -- Measures and doses pH (0.00-14.00 pH)
ORP -- Measures Redox and doses chlorine (±1000 mV)
FCl -- Measures and doses free chlorine (potentiostatic probe)
TMP -- Measures temperature
FLOC -- Timed dosing of flocculant


All models have backlit large-format graphic display with intuitive control.




The PCD station allows the selection of single-point or two-point calibration of the measured parameters. It can be password protected and provides clear display notifications of operational, warning, and alarm conditions.


Technical data:

This station comes with two DINODOS EASY pumps



The PC Dynamics station can be controlled via a smartphone

• Bluetooth connection
• Remote overview of water parameters on a smartphone via the 'dinoAccess' app for Android
• Customizable alarm threshold settings
• Ideal for installations with limited machine room access


PCD station advantages:

• Easy installation, intuitive operation
• Precise continuous measurement
• Calibration using calibration solutions
• ASR system (self-cleaning mode of the activated oxygen and free chlorine probe)
• The cell is equipped with a flow sensor
• Automatic measurement compensation based on flow rate
• Automatic delayed dosing
• Automatic pump shutdown safety feature
• PC communication including data logging
