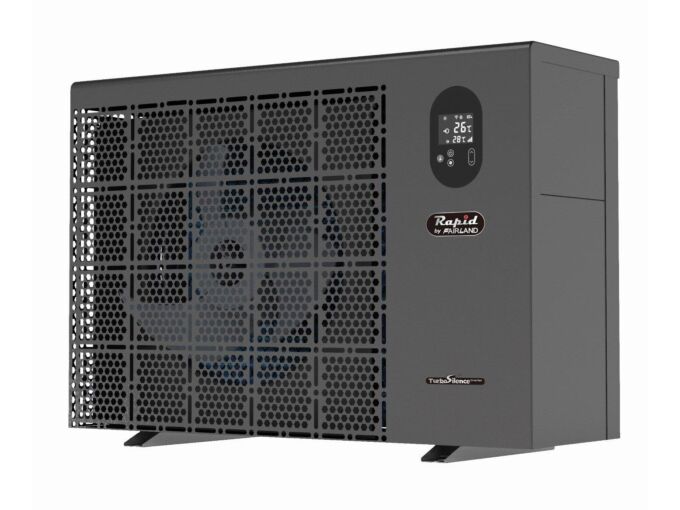

Rapid Inver-X is equipped with an inverter compressor and fan motor, which allows the power and speed of the fan to be smoothly regulated by electronics according to the current needs. The great advantage of this system is faster heating and maintaining a constant water temperature, eliminating 'cold starts' that affect the lifespan of both heat pump components and electricity consumption. C.O.P. up to 16.5 under ideal conditions is not a commercial trick, but is certified by TÜV Rheinland.

By combining 'Full-Inverter' technology with technologically improved components, a higher quality heat exchange and better air circulation have been achieved. New times, an improved evaporator, and an insulated compressor ensure the ability to instantly increase the heating power by 20% without increasing noise and energy consumption.

Three intelligent modes:

Turbo: 120% power -- thanks to TurboSilence technology
Smart
Silence

When the Rapid Inver-X is running at medium or low speeds to maintain the pool temperature, the compressor noise is extremely low and depending on the pool size, it has an efficiency of up to a COP of 15.5 (at air temperature of 26°C, water temperature of 26°C, and air humidity of 80%).

Cooling power: 12 kW

Power: Air 26°C, Water 26°C, Humidity 80%
Heating power (Smart mode)	22 kW
Heating power (Turbo mode)	26 kW
COP (Smart mode)	8
COP	16.5~7.0
COP (50% power capacity)	11.6

Power: Air 15°C, Water 26°C, Humidity 70%
Heating power (Smart mode)	15 kW
Heating power (Turbo mode)	18 kW
COP (Smart mode)	5.6
COP	8.0~5.1
COP (50% power capacity)	7

Product video

More Information
Product type:	Inverter heat pump
Color:	Black
Net transport weight kg	98 kg
Digital display:	Yes
Heating power	22 kW
Cooling	Yes
Cooling capacity	12 kW
Recommended pool volume, m3	55 - 100 m3
Rated power	0,38 - 3,53 kW
Connection	50 mm
Defrosting	Yes
Refrigerant used	R32
Voltage, V	230
Efficiency:	16,5 C.O.P.
For salt water	Yes, up to 5 g/l (<0.5%)
El. expansion valve:	No
Net dimensions, mm	1125 x 429 x 952 mm
Flow monitoring:	No
For sea water:	No
Pressure circuit welded with silver:	No
Rated current	1,65 - 15,3 A
Recommended water flow rate, (m³/h)	8 - 10 m3/h
Digital control panel:	No
Spiral material	Titan
Operating temperature	- 15 do 43 °C
Easy to install:	No
Operating temperature	Yes
Energy saving	Yes
Weight	102 kg
In group packs	1
On palette	4
