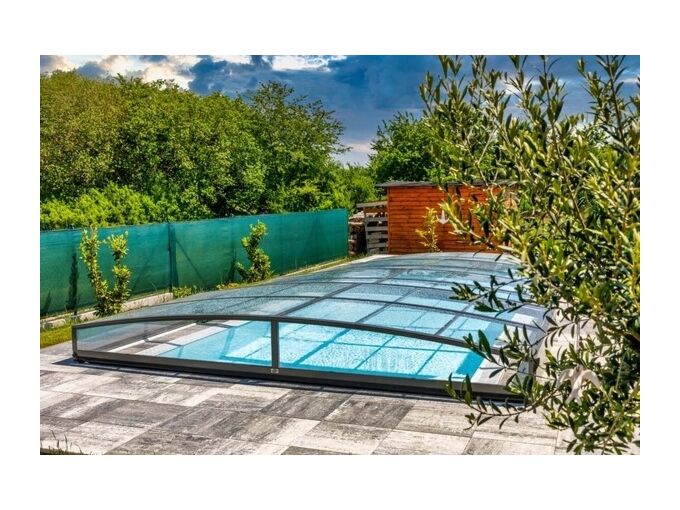

SYDNEY - a design enclosure that we developed for you in collaboration with designers from the automotive industry. Not only will enthusiasts appreciate its ultra-low profile, elegant curves, and unique appearance.
Max. COVERED AREA
400 х 850 cm
HEIGHT
56 cm
COLOUR
Anthracite DB703
With warranty and additional installation service.
Do you want to have a stylish enclosure for the pool and, moreover, it should be low? Then this model will suit you perfectly. The modern, elegant and at the same time simple design of this model looks unobtrusively and will perfectly fit into any style of garden, without blocking the space, as it has an ultra-low profile.
On the other hand, the Sydney enclosure is special and ergonomic, because it is equipped with only one guide rail along which the largest module moves, all other modules are railless and they are opened and closed by inertia. You can choose which side the rail will be placed on: right or left. This way of movement of the structure allows you to preserve the beach area and simplify the installation of the enclosure.
The Sydney model is characterized by ease of movement, modern in appearance and reliability. Since this model is too low for full bathing, we recommend you to lengthen the rail by at least 250 cm for greater comfort.
The side part of the enclosure, made of high-quality aluminum alloy, stands out for its elegant lines and has a built-in guide system, thanks to which the minimization of height is achieved in comparison to other models. And the perfect horizontal lines of the profiles in combination with polycarbonate panels complement the sophisticated style.
Technical characteristics of the pool enclosure Sydney B:
Details of the Sydney B pool enclosure, 4 x 8,5 m in size:
Fewer rails, more comfort!
For maximum ergonomics, the SYDNEY pool enclosure is equipped with only 1 guide rail on one side of the cover. A large module moves along it, all other modules are completely trackless. The guide rail can be selected from the left or right. For greater comfort, we recommend lengthening the rails.
You can also complete your swimming pool enclosure with our configurator. You can choose not only the color, but also functional features such as a lock, additional rails or our innovative electric drive MOOVER.
Guide rail extensions
The enclosure is equipped with guide rails on both sides. The length of the rails is equal to the total length of the pavilion. To enable you to move the pavilion outside your pool, we recommend you purchase an additional extension of the guide rails.
The extension of the guide rails brings comfort in the form of maximum use of the entire useful area of the pool and its accessibility from all sides.
The standard length of the guide rails corresponds to the overall length of the enclosure and is ideal for a pool located in a small garden.
Electric drive MOOVER
The best way to get your enclosure moving.
The MOOVER is a modern and technologically advanced electric drive system for enclosures. Developed in cooperation with engineers from the automotive industry, it is a must have for every owner of a pool with enclosure.
MOOVER is quiet and smooth in operation; it is remote controlled and solar powered. You can install it yourself in a new or already existing enclosure.
Everything you need to know about MOOVER.
Power unit: The high-capacity battery (12 V, 18 Ah) can power the electric sliding system for up to 1.5 hours of continuous operation. What is more, thanks to the 7-Wh photovoltaic panel, MOOVER can have enough energy for normal operation throughout the
bathing season if there is enough sunlight.
LED panel: The intelligent LED panel informs you about the current status of your MOOVER.
Suspension system: The rubber wheel, which transmits all the power of the drive system, ensures optimum traction on most surfaces, even in wet conditions. Traction on uneven surfaces is also helped by a spring that can cover up to 8 mm of unevenness.
Drive system: The electric motor is able to generate sufficient power with minimal energy consumption, thanks to its 150W power
output and its connection to a worm gearbox. Furthermore, the gearbox is maintenance-free and damped with silent blocks.
Mounting system: The attachment of MOOVER to the enclosure is easy for anyone to install, yet versatile enough to be installed on
any enclosure.
Have a question? We will be happy to advise you about swimming pool enclosures.
Contact us!
Choose your pool enclosure!
| Suitable for pool size: | 4 х 8 m |
|---|---|
| Colour | "Anthracite" DB703 |
| Maximum covered area | 402 x 852 cm |
| Number of modules | 4 |
| Outer width "B" | 450 cm |
| Outer width "A" | 408 cm |
| Outer length "E" | 860 cm |
| Outer heigth "V" | 56 cm |
| Side entrance | x |
| Module panels | transparent channel polycarbonate with a thickness of 8 mm with UV protection |
| Front head | fixed |
| Front head panel | transparent solid polycarbonate with a thickness of 4 mm with UV protection |
| Rear head | fixed |
| Rear head panel | transparent solid polycarbonate with a thickness of 4 mm with UV protection |
| Raised lower edge of heads | 6 cm |
| Supporting profiles | L |
| Track | AIR single-sided, only 1 rail |
| Module locking | lockable |
| Enclosure weight | 623 kg |
| BOX package size | 561 x 60 x 150 cm |
