All components are discreetly hidden in the technical shaft, yet easily accessible and located in close proximity to the swimming pool - thus, no friction or heat losses occur.

The technical shaft is already prepared for the connection of a heater/pool heat pump.

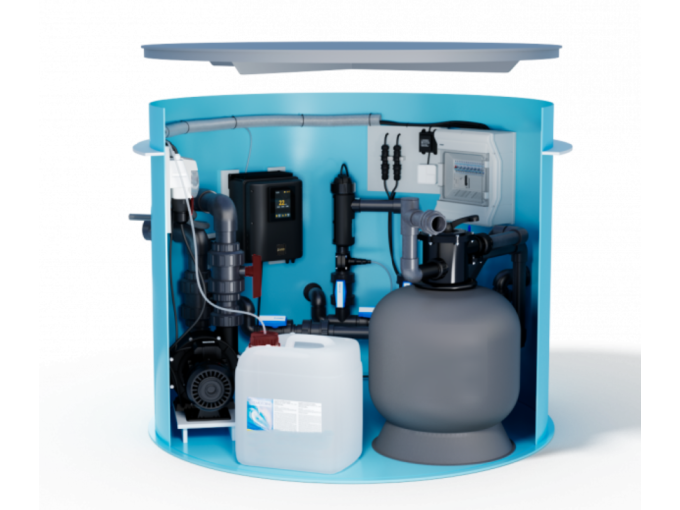

Details technical shaft Oxy Plus | LowSalt:

Round technical shaft
Pool counter-current system Brilix Elegance 70
Pool water treatment Oxilife with pH regulation including salt
Pool sand filter system FSP-500 including sand
Power distribution panel (technology already connected)
Integrated bypass for connecting a pool heat pump
Including filter sand and pool salt
Connection: 400V
Inner diameter: 150cm
Outer diameter: 166cm
Depth: 120cm
Material: Polypropylene

Pool salt water disinfection Oxilife, including hydrolysis, pH regulation and salt.

In addition to electrolysis, the Oxilife system also works with hydrolysis. In hydrolysis, water molecules are split, which creates oxidants that are more powerful than traditional chlorine and can disinfect pool water within seconds. Due to the combined disinfection, the Oxilife system only requires 1.5 kg of table salt per cubic meter of water (usually only once a year since salt does not evaporate). The system is equipped with a self-cleaning cell. The pool saltwater electrolysis and hydrolysis provide fully automated disinfection of your pool.

Pool disinfection without adding chlorine
Crystal clear water
Very low operating costs
Fully automatic pH regulation
Self-cleaning cell
Only 5% of seawater salt content required (barely noticeable)
Disinfects stronger than chlorine
Disinfection at minimal salt levels

Pool counter-current system Elegance with 70m³/h

Would you like to swim in your own Olympic-sized pool, but it's too big for your garden? The counter-current system Elegance is the perfect solution for this. Thanks to the Elegance counter-current system with 70m³/h, you can also train your fitness in your pool / swimming pool. Thanks to the easy operation directly from the pool / swimming pool and continuously adjustable power, your family will also appreciate the Elegance counter-current system. In addition, the Elegance counter-current system offers a unique massage function.

Power: 70 m³/h
Pump: 2.2 kW 400V
Elegant round front part
2x ball valve ø 75 mm

Pool Sand Filter System FSP-500 including sand

The Pool Sand Filter Complete System FSP-500 is equipped with a base plate on which the Polypropylene filter vessel is placed, fitted with a 6-way valve with a pressure gauge and a glued connection fitting ø50 mm. The circulation pump, including an additional hair filter with a capacity of 9 m³/h, is also located on the base plate and connected to the filter vessel by a flexible hose. The filter uses sand (recommended grain size 0.6 - 1.2mm) to capture impurities from the pool water. The filter vessel is filled with filter sand and acts as a dirt collector. When the valve is in the "filter" position, the contaminated pool water is sucked through a hose system and automatically pushed into the control valve with patented filter and from there transported to the upper part of the filter vessel. The water is then pushed through the sand, which removes fine impurities, and discharged into the lower part of the vessel. The water is returned to the pool through hoses via the control valve. The entire process is continuous, automatic and ensures complete filtration of the swimming pool water. After a certain operating time (4-8 weeks), impurities accumulate in the filter vessel, leading to a deterioration in water flow through the sand and a reduction in flow through the filter unit (indicated by an increase in pressure on the pressure gauge). This means that it is time to clean the filter. To do this, simply move the operating lever of the 6-way valve to the "rinse" position. The water flow is automatically reversed so that the water flows from bottom to top through the filter sand and flushes the deposited impurities into the drain. Once the filter has been rinsed, move the valve lever to the "pre-filter" position and turn on the pump for half to one minute; then move the valve lever back to the "filter" position to resume normal filter operation.

xpool_sandfilter_komplett_anlage_brilix_fsp.jpg.pagespeed.ic.H4uMzEdf8n

Extremely low noise
Hair pre-filter
Sight glass in the circulation pump
Motor shaft: stainless steel
Motor housing: aluminum L-2521
Winding: impregnated with epoxy resin
Connection: Ø 50 mm
Certified IP 55
Dimensions: 85 x 53 x 76cm (height x width x length)
Max. flow rate: 9 m³/h
Sand capacity: 85kg (recommended grain size 0.6 - 1.2mm)
Voltage: 230V
Motor power: 330 watts

SPECIFICATION
Type
Technical shaft (underground)
Disinfection
Saltwater electrolysis and hydrolysis including pH regulation
Countercurrent system
with counter current system

More Information
Filtration	Sand P50 - 85 kg
Pump	PREVA 50 - flow rate 9 m³/h
Water treatment	Oxygen, Chlorine semi-automatic
Water	Salt 1,5 g/l
Automatic pH control	✔
Automatic disinfection control	optional
Smart control connecting point	✔
Heat pump connecting point	✔
Discharge connecting point	✔
Counterflow connecting point	✔
Counterflow pump	✔
Pool light remote control	✔
Pipe fittings	✔
Switchboard *	✔
Shaft diameter	150 cm
Shaft depth	120 cm
