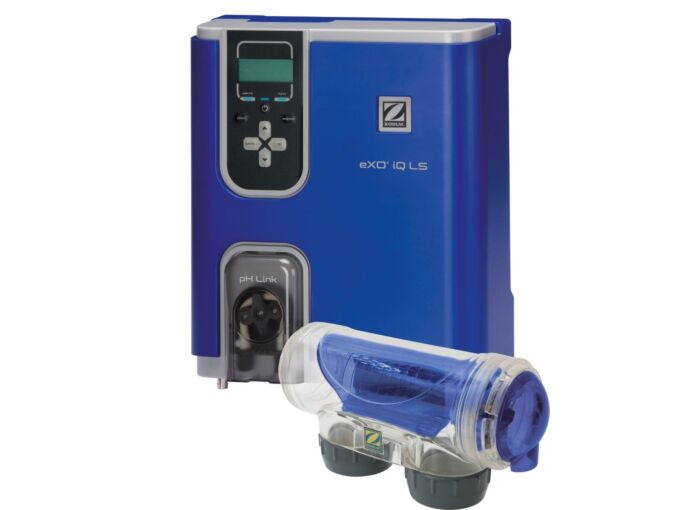

ZODIAC eXO® iQ LS 18, up to 70 m3

EXO® iQ LS - unit for treating salt water with a recommended salinity of 2g/l

The Zodiac EXO® iQ LS is a system that can generate chlorine (salt electrolysis) just like the Ei2 or Ei2 Expert. The EXO® iQ LS unit can be expanded with the "pH Link" or "Dual Link" additional module.

• pH Link allows pH regulation and dosing
• Dual Link allows both pH regulation and dosing, as well as ORP regulation

The Zodiac EXO® iQ LS system can be remotely controlled via WiFi connection and the iAqualink app. The app allows you to monitor current water parameter status, adjust desired parameters, and control associated devices (lights, filtration, counter-current, ...)

You can connect the following to this unit:

• Filter pump
  • Single-speed (any brand)
  • Variable-speed - ZODIAC FloPro VS

• AUX1 - Lights
  • You can control any WHITE lights - ON/OFF
  • You can control RGB lights (ZODIAC) - the program is pre-set to ZODIAC NL color schemes

• AUX2 - Heat pump,
  • The heat pump is controlled via a contactor (needs to be purchased separately)
  • You can set the heating according to filtration times or activate "TEMPERATURE PRIORITY" - every 120 minutes, the heat pump triggers the filtration circuit, measures the water temperature, and if it is lower than the desired temperature, the filtration pump will remain in operation for the necessary time to heat the pool.

Recommended pool volume - max 70 m³ -> with a minimum filtration time of 8 h/day

The Zodiac® EXO iQ LS 18 has an IP43 rating and a maximum chlorine production of 18g/h for private pools with a volume of up to 70 m³ (8h/day)

• Backlit 4-line LCD display
• User interface in CZ, EN, DE, ...
• "BOOST" function (100% output - 24h) and "LOW" function (10% output - 24h)
• Flow switch
• Timer
  • Setting the chlorine production time (2 timers can be set)
  • Setting for single-speed pumps (2 timers)
  • Setting for variable-speed pumps (4 timers)
  • 1 timer for additional devices
• Reverse polarity every 5 hours (can be adjusted from 2h to 8h)
• Cell lifespan: up to 10,000 hours
• Temperature sensor for protecting the electrolytic cell and measuring water temperature (in case of heat pump connection)
• It is recommended to have the unit permanently connected to the power supply (for battery backup, which maintains timer settings in case of power failure)

Warranty period for probes (not included) -

• ORP probe - 1 year (not included in the package - DUAL Link needs to be purchased)
• pH probe - 2 years (not included in the package - pH Link or DUAL Link needs to be purchased)

In the package:

• EXO iQ LS device
• Cell
• Mounting kit for concrete installation
• Flow detection kit - flow switch
• Temperature probe kit
• Reduction kit
