Titanium Heat Line heat exchangers are designed primarily for heating pool water and water in hot tubs or spas. However, they can also be used for floor heating, sidewalks, etc. Heat Line heat exchangers can be connected to all types of heating in your home (heat pump, boiler, solar collector, etc.)

Titanium heat exchangers are more resistant to corrosion. Heat Line can therefore be used with saltwater.

Extra strong body--the heating pipes are made of titanium and the body of durable noryl polyamide.

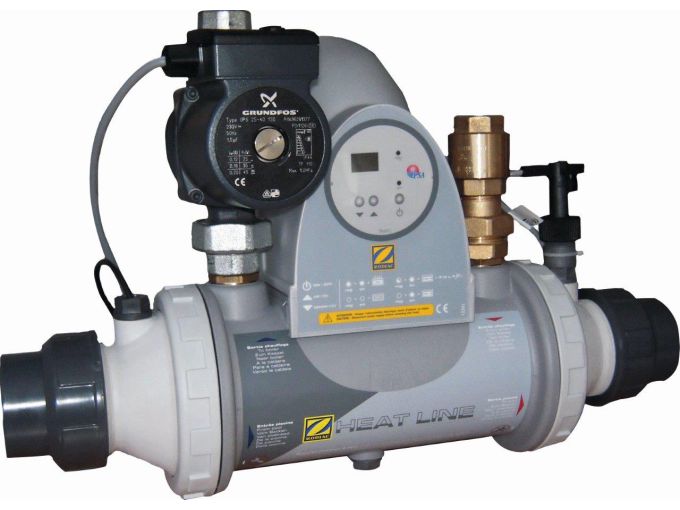

The Heat Line COMPACT heat exchanger includes a check valve, flow control valve, temperature sensor, circulating pump, and control panel for setting and managing the exchanger.

Power at 90°C heating part temperature (kW)	40
Power at 60°C heating part temperature (kW)	17
Power at 45°C heating part temperature (kW)	8
Water flow rate in the heating part (m³/h)	1.7
Water flow rate in the pool part (m³/h)	15

More Information
Digital display:	No
Cooling	No
Recommended pool volume, m3	max 120 m3
Rated power	40 kW
Body material	Noryl-Polaymid
Defrosting	No
For salt water	above 5 g/l (>0,5%)) max 6g/l
El. expansion valve:	No
Flow monitoring:	No
For sea water:	No
Pressure circuit welded with silver:	No
Digital control panel:	No
Max. work pressure	2 bar
Spiral material	Titan
Operating temperature	90 °C
Easy to install:	Yes
Operating temperature	No
Weight	15 kg
In group packs	1
On palette	0

Warranty

This product has 12 month warranty. In the event of a product breakdown within the warranty period, you should contact us as soon as possible.

The Buyer has the right to make his defective goods claim within 12 months of accepting the goods. If a defect manifests itself within six months of the Buyer accepting the goods, such goods are presumed to be defective at acceptance unless the Seller proves otherwise.
