Titanium Heat Line heat exchangers are designed primarily for heating swimming pool water and water in whirlpools or spas. However, they can also be used for underfloor heating, sidewalks, etc. Heat Line heat exchangers can be connected to all types of heating in your home (heat pump, boiler, solar collector, etc.)

Titanium exchangers are more resistant to corrosion. Heat Line can therefore be used with saline water.

Extra strong body -- the heating pipe is made of titanium and the body is made of resistant noryl polyamide.

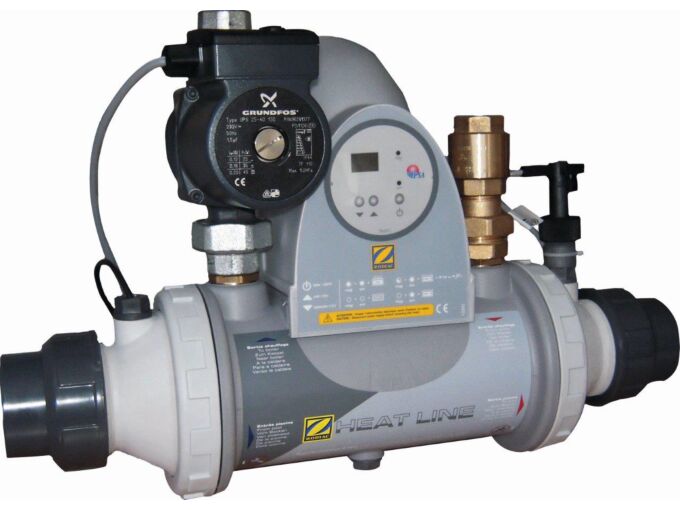

The Heat Line COMPACT heat exchanger includes a check valve, flow regulator, temperature sensor, circulation pump, and control panel for settings and control of the exchanger.

Heat output at heating temperature of 90°C (kW)	70
Heat output at heating temperature of 60°C (kW)	30
Heat output at heating temperature of 45°C (kW)	14
Water flow in the heating circuit (m³/h)	3
Water flow in the pool circuit (m³/h)	20

More Information
Digital display:	No
Cooling	No
Recommended pool volume, m3	max 200 m3
Rated power	70 kW
Body material	Noryl-Polaymid
Defrosting	No
For salt water	above 5 g/l (>0,5%)) max 6g/l
El. expansion valve:	No
Flow monitoring:	No
For sea water:	No
Pressure circuit welded with silver:	No
Digital control panel:	No
Max. work pressure	2 bar
Spiral material	Titan
Operating temperature	90 °C
Easy to install:	Yes
Operating temperature	No
Weight	16 kg
In group packs	1
On palette	0
