ZODIAC HEAT LINE Compact without circulation pump; Titan 20 kW

Add to Wish List

Choose the necessary configuration

In stock
In stock
In stock
Secure Payment
Enter a value ...
inc VAT
Product code

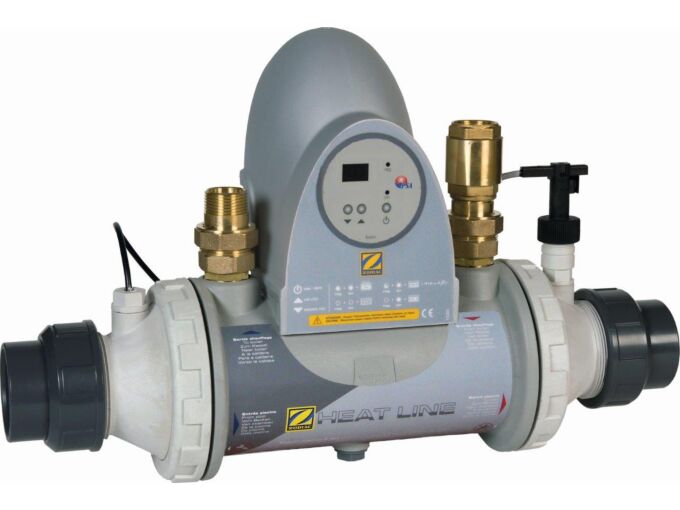

Titanium Heat Line heat exchangers are especially designed for heating pool water and water in whirlpools or spas. However, they can also be used for underfloor heating, paths, etc. Heat Line heat exchangers can be connected to all types of heating in your home (heat pump, boiler, solar collector, etc.)

Titanium exchangers are more resistant to corrosion. Heat Line can therefore be used with salt water.

Extra strong body - the heating pipe is made of titanium and the body is made of resistant noryl-polyamide.

The KOMPAKT Heat Line heat exchanger includes a check valve, flow control valve, temperature sensor and control panel for setting and controlling the exchanger.

Power at a temperature of 90°C (kW) for heating part20
Power at a temperature of 60°C (kW) for heating part8.5
Power at a temperature of 45°C (kW) for heating part4
Water flow in heating part (m3/h)0.9
Water flow in pool part (m3/h)10
More Information
Digital display:No
Recommended pool volume, m3max 50 m3
Rated power20 kW
Body materialNoryl-Polaymid
For salt water above 5 g/l (>0,5%)) max 6g/l
El. expansion valve:No
Flow monitoring:No
For sea water:No
Pressure circuit welded with silver:No
Digital control panel:No
Max. work pressure2 bar
Spiral materialTitan
Operating temperature90 °C
Easy to install:Yes
Operating temperatureNo
Weight4.72 kg
In group packs1
On palette0


This product has 12 month warranty. In the event of a product breakdown within the warranty period, you should contact us as soon as possible.
