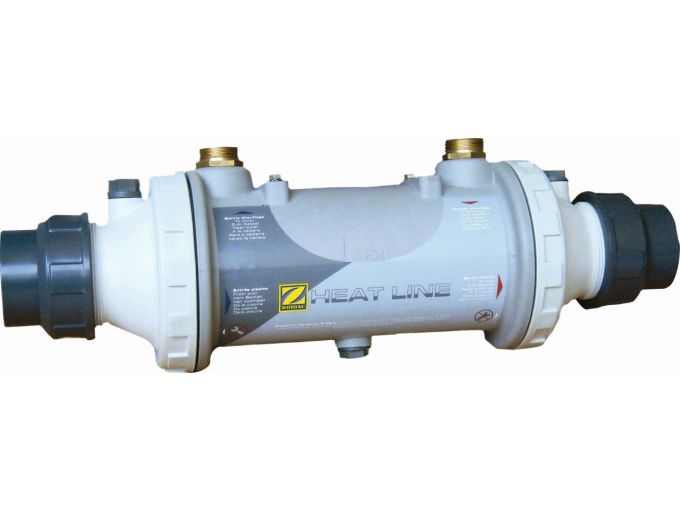

ZODIAC HEAT LINE Heat Exchanger; Titan 20 kW, with return valve included

Add to Wish List

Choose the necessary configuration

In stock
In stock
In stock
Secure Payment
Enter a value ...
inc VAT
Product code

Titanium Heat Line heat exchangers are designed primarily for heating pool water and water in whirlpools or spas. However, they can also be used for floor heating, sidewalks, etc. Heat Line heat exchangers can be connected to all types of heating systems in your home (heat pump, boiler, solar collector, etc.)

Titanium exchangers are more resistant to corrosion. Therefore, Heat Line can also be used with saltwater.

Extra sturdy construction -- heating pipes are made of titanium and the body is made of durable noryl-polyamide.

Power output at heating side temperature of 90°C (kW)20
Power output at heating side temperature of 60°C (kW)8.5
Power output at heating side temperature of 45°C (kW)4
Water flow rate in the heating side (m3/h)0.9
Water flow rate in the pool side (m3/h)10


More Information
Digital display:No
Recommended pool volume, m3max 50 m3
Rated power20 kW
Body materialNoryl-Polaymid
For salt water above 5 g/l (>0,5%)) max 6g/l
El. expansion valve:No
Flow monitoring:No
For sea water:No
Pressure circuit welded with silver:No
Digital control panel:No
Max. work pressure2 bar
Spiral materialTitan
Operating temperature90 °C
Easy to install:Yes
Operating temperatureNo
Weight4.72 kg
In group packs1
On palette0
