Flow Monitor K100 - input RS485 output

Digital flow meters

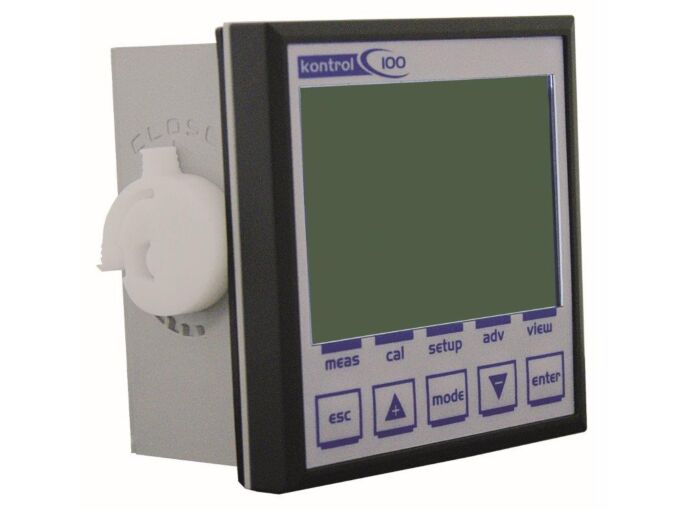

The new FLS M9.02/Control 100 monitors are used to convert the frequency signal of the flow sensor FLS F3/SFW (H13 and H15/1-FPM and 2-FPM - according to pipe size) to flow rate. Both are equipped with a wide, fully graphic display that shows the currently measured values and many other useful information. Thanks to prominent color highlighting (Green/Red), you can easily determine the status even from a distance. Easy installation and setting of all parameters using the wizard. Calibration with K factor is controlled automatically or manually. Output (0)4-20 mA / RS485 Modbus for data transmission to external devices.

• Possibility of connecting to a PC for data recording with VA DATALOG FLS - signal (0)4-20 mA.
• Installation set - drilling saddles
• Installation set - flow sensor F3.H01-03 / F3.H13-15
• IP65 cover box
