Athlete countercurrent unit with two piezoelectric buttons can only be used if the pool technology is equipped with the intelligent VArio system and DIN PUMPS module - otherwise it is not possible to control the pump speed using buttons (piezoelectric buttons cannot be directly connected to the frequency converter).
Piezoelectric buttons are connected to the VArio DIN PUMPS module and there is no need to install the PRO PIEZO electronics.

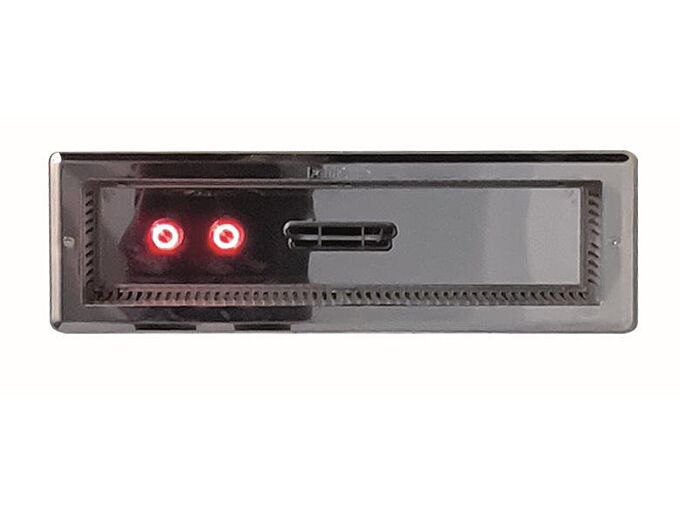

JET SWIM ATHLETE - front panel (countercurrent unit)
- The panel is made of AISI316L stainless steel
- Two oval nozzles
- Part of the panel - 2x piezoelectric button (for controlling the pump performance via a frequency converter)
Selecting the frequency converter depending on the chosen pump:
| Countercurrent version | Pump | Pump supply voltage | Frequency converter | Supply voltage |
|---|---|---|---|---|
| JET SWIM Athlete 66 m3/h | BRAVUS 300M | 230 V | Not available for this pump performance | |
| JET SWIM Athlete 66 m3/h | BRAVUS 300T | 400 V | OPTIDRIVE E3 4 KW | IN: 3x 400 V / OUT: 3x 400 V |
| JET SWIM Athlete 74 m3/h | BRAVUS 400T | 400 V | OPTIDRIVE E3 4 KW | IN: 3x 400 V / OUT: 3x 400 V |
| JET SWIM Athlete 86 m3/h | BRAVUS 550T | 400 V | OPTIDRIVE E3 5.5 KW | IN: 3x 400 V / OUT: 3x 400 V |
