Heating - EOVnTi-3, 3 kW, 230 V Titan – for above-ground pools

Electric flow heaters are designed for heating water in pools and hot tubs, the operation involves heating the flowing water by the heating element, the temperature of the heated water is set by a regulating thermostat. The heating element is switched on by a contactor, which is controlled by the aforementioned thermostat, a safety flow indicator. For this reason, a so-called large automation is necessary for heating - a 24-hour filter programmer, a current protector (protection against dangerous touch voltage), thermal protection of the motor, contactor and heater switch. The entire heating system is made of stainless steel titanium material (for saltwater) or plastic.

Pool electric flow water heaters of the EOV, EOVp, EOVk, EOVTi, EOVnTi and EOVn type are specially designed by their construction for heating pool water or water in other water circuits with a flow and temperature of up to 40°C. Each heater must be installed in the electrical system behind the current protector. We therefore recommend supplementing the device with a suitable type of automatic control from VÁGNER company, which reliably ensures not only the desired comfort but also the safety of operation.

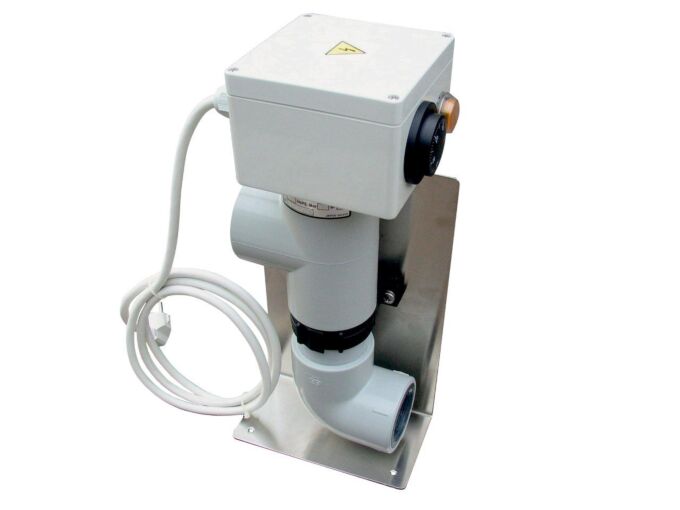

• EOVnTi, this flow heater is intended for heating water in above-ground pools. The heater itself is attached to a stainless steel stand that ensures stable positioning of the heater after anchoring. The heater body is made of the same material as the EOVTi type, a plastic resistant to high temperature, and the heating cartridge is made of TITANIUM. The temperature is regulated by a thermostat up to 40°C, and the device should also be equipped with thermal protection. The heater is equipped with a flex cable for connection to a 230 V socket behind a current protector. Connection to the water circuit is made by hose nozzles with a diameter of 38 mm, or a thread of 1.5" in. Each heater is pressure tested.

Operating conditions:

• Minimum water flow: 4 m³/h
• Operating pressure: 0-3 bar
• Connection: to the water circuit with a pipe diameter of 50 mm
• Water quality: chloride content max. 150 mg/l
• chlorine content max 1 mg/l
• pH range 7.0-7.8
