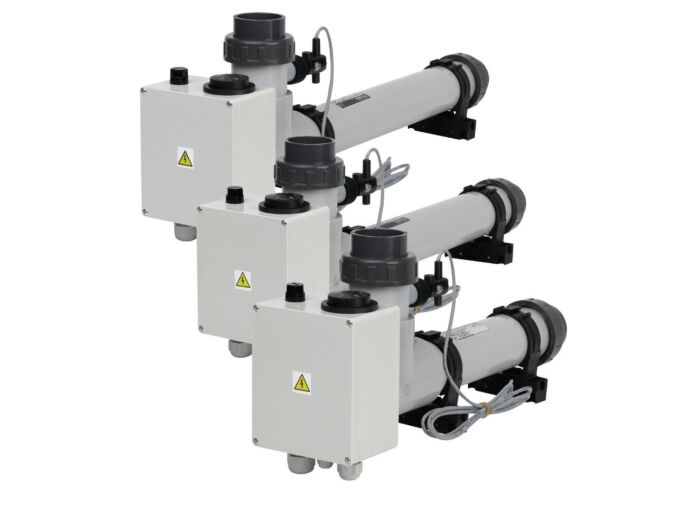

Heating EOVp-12, 12 kW, 400 V, plastic with electric flow valve

Electric flow heaters are designed for heating water in pools and whirlpools, the operation consists of heating the flowing water through the heating element, the temperature of the heated water is set by the regulating thermostat. The heating element is switched on by a contactor, which is controlled by the aforementioned thermostat, and a safety flow indicator. For this reason, a so-called large automation is necessary for heating - a 24-hour filter programmer, a current protector (protection against dangerous touch voltage), thermal protection of the motor, contactor, and heating switch.

Pool electric flow heaters of types EOV, EOVp, EOVk, EOVTi, EOVnTi, and EOVn are specifically designed for heating pool water or water in other water circuits with a flow and temperature of up to 40°C. Each heater must be installed in an electrical system behind a current protector. Therefore, we recommend complementing the device with a suitable type of automatic control from VÁGNER, which reliably ensures not only the desired comfort but also user safety. The difference between EOV and EOVp lies in the use of plastic for the body cover and the use of a flow valve instead of a pressure switch as a protective element for water flow.

Each EOV electric heater:

• utilizes the conversion of electrical energy into thermal energy
• is made of high-quality PVC (EOVp type)
• has a heating cartridge made of stainless material INCOLOY 800, M1182, ensuring the best quality
• is 100% leak tested
• can be connected to the water circuit by gluing 50 mm
• is equipped with a thermostat up to 40°C and a thermal fuse
• is equipped with a flow switch that controls the flow of water
• is equipped with 2 brackets for easy installation

Operating conditions:

• Minimum water flow: 4 m³/h
• Operating pressure: 0-3 bar
• Connection: to the water circuit with a pipe diameter of 50 mm
• Water quality: chloride content max. 150 mg/l
• chlorine content max. 1 mg/l
• pH range 7.0-7.8
