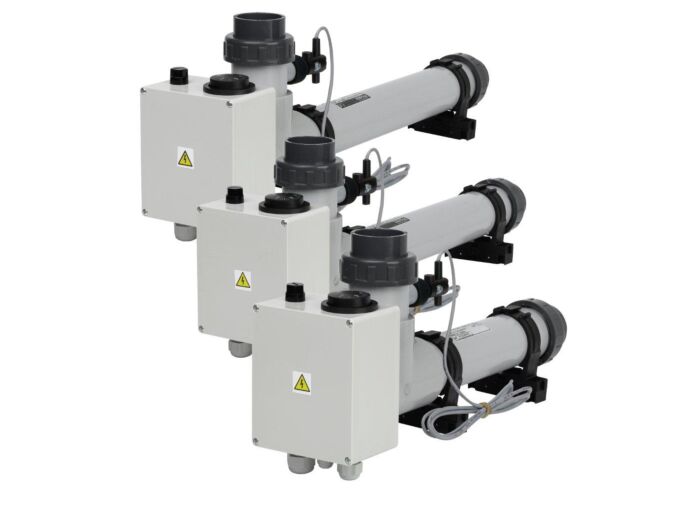

Heating EOVp-3, 3 kW, 3 x 230 V, plastic with electrical flow control flap

Electric flow heaters are designed for heating water in pools and whirlpools. The operation consists of heating the flowing water with a heating element, and the temperature of the heated water is set by a regulating thermostat. The heating element is controlled by a contactor, which is operated by the aforementioned thermostat, and a safety flow indicator. For this reason, the heating requires a so-called control unit - a 24-hour filtration programmer, a current protector (protection against dangerous touch voltage), thermal protection of the motor, contactor, and heating switch.

Swimming pool electric flow water heaters types EOV, EOVp, EOVk, EOVTi, EOVnTi, and EOVn are specially designed for heating swimming pool water or water in other water circuits with a flow and temperature of up to 40°C. Each heater must be installed in the electrical system behind a current protector. Therefore, we recommend complementing the device with a suitable type of automatic control from VÁGNER, which reliably ensures not only the desired comfort but also the user's safety. The difference between EOV and EOVp lies in the use of plastic for the body cover and the use of a flow control flap instead of a pressure switch as a protective element for water flow.

Each EOV electric heater:

• utilizes the conversion of electrical energy into thermal energy
• is made of high-quality PVC (EOVp type)
• has a heating cartridge made of stainless steel material INCOLOY 800, M1182, guaranteeing the best quality
• is 100% tested for tightness
• can be connected to the water circuit by gluing 50 mm
• is equipped with a thermostat up to 40°C and a thermal fuse
• is equipped with a flow switch that controls water flow
• is equipped with 2 pcs of brackets for easy installation

Operating conditions:

• Minimum water flow rate: 4 m³/h
• Operating pressure: 0-3 bar
• Connection: to the water circuit with a pipe diameter of 50 mm
• Water quality: chloride content max. 150 mg/l
• chlorine content max. 1 mg/l
• pH range 7.0-7.8
