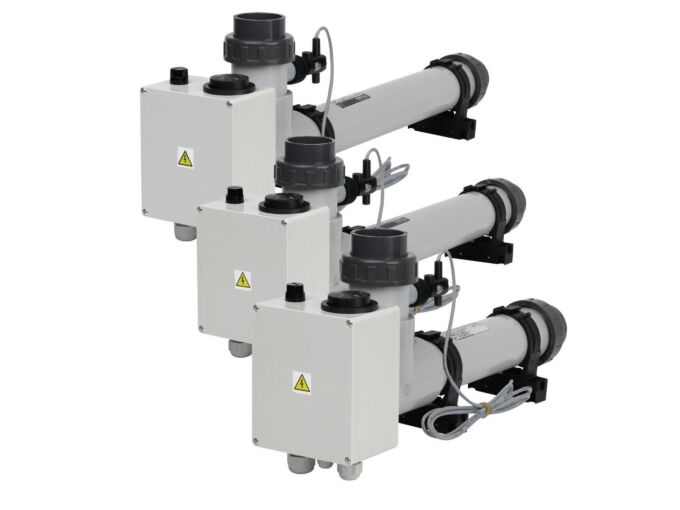

Heating EOVp-6, 6 kW, 400 V, plastic with electric flow valve

Electric flow-through water heaters are designed for heating water in pools and hot tubs. The operation involves heating the flowing water with a heating element, and the temperature of the heated water is regulated by a thermostat. The heating element is controlled by a contactor, which is operated by the aforementioned thermostat, a safety flow indicator. Therefore, heating requires what is called a large automation - a 24-hour filtration timer, a current protector (protection against dangerous touch voltage), thermal protection of the motor, contactor, and heating switch.

Pool electric flow-through water heaters types EOV, EOVp, EOVk, EOVTi, EOVnTi, and EOVn are specially designed for heating pool water or water in other water circuits with a flow and temperature of up to 40°C. Each heater must be installed in the electrical system behind a current protector. Therefore, we recommend supplementing the device with a suitable type of automatic control from VÁGNER, which reliably ensures not only the desired comfort but also the safety of operation. The difference between EOV and EOVp is the use of plastic for the body shell and the use of a flow valve instead of a pressure switch as the protective element for water flow.

Each EOV electric heater:

• Utilizes the conversion of electrical energy into thermal energy
• Made of high-quality PVC (EOVp type)
• Has a heating cartridge made of stainless material INCOLOY 800, M1182, ensuring the best quality
• Is 100% leak tested
• Can be connected to the water circuit by gluing 50 mm
• Equipped with a thermostat up to 40°C and a thermal fuse
• Equipped with a flow switch that controls water flow
• Equipped with 2 brackets for easy mounting

Operating conditions:

• Minimum water flow: 4 m³/h
• Operating pressure: 0-3 bar
• Connection: to a water circuit with a pipe diameter of 50 mm
• Water quality: chloride content max. 150 mg/l
• Chlorine content: max 1 mg/l
• pH range: 7.0--7.8
