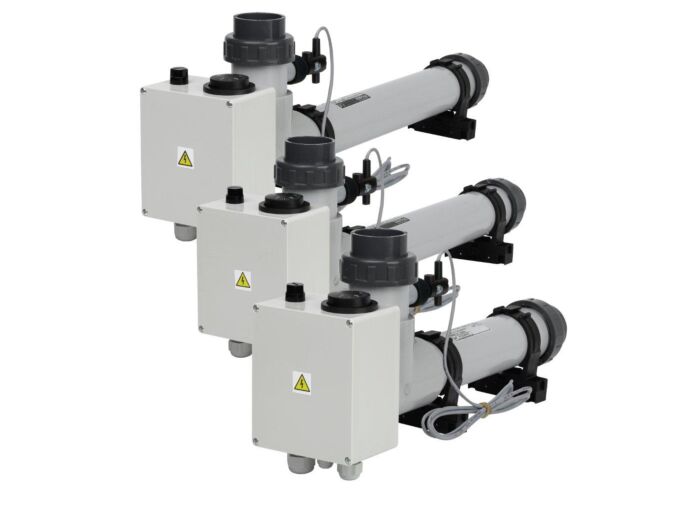

Heating EOVTi-12, 12 kW, 3 x 400 V, Titan with electric flow valve.

Electric flow heaters are designed for heating water in pools and hot tubs. The operation involves heating the flowing water with a heating element, and the temperature of the heated water is set by a regulating thermostat. The heating element is controlled by a contactor, which is operated by the aforementioned thermostat and a safety flow indicator. For this reason, a so-called "large automation" is necessary for heating - a 24-hour filter programmer, a current protector (protection against dangerous touch voltage), thermal protection for the motor, contactor, and heater switch. The entire heating device is made of stainless steel titanium (for saltwater) or plastic. Pool electric flow water heaters of types EOV, EOVp, EOVk, EOVTi, EOVnTi, and EOVn are specially designed for heating pool water or water in other water circuits with a flow and temperature of up to 40°C. Each heater must be installed in the electrical system behind a current protector. Therefore, we recommend supplementing the device with a suitable type of automatic control from VAGNER, which reliably ensures not only the desired comfort but also operator safety. Electric heater EOVTi: - Utilizes electrical energy to generate thermal energy - Made of high-quality PVC - Equipped with a TITANIUM heating cartridge. TITANIUM is the most corrosion-resistant material available. - 100% leak tested - This type of heater is suitable for abnormal stress and higher chlorine concentration. It can be used in combination with any water treatment, such as electrochemical saltwater generators, etc. - Equipped with a thermostat up to 40°C and thermal protection - Equipped with a flow switch that controls water flow - Equipped with 2 brackets for easy installation. Operating conditions: - Minimum water flow: 4 m3/h - Operating pressure: 0-3 bar - Connection: to a water circuit with a pipe diameter of 50 mm - Water quality: chloride content maximum 150 mg/l, chlorine content maximum 1 mg/l, pH range 7.0-7.8.
