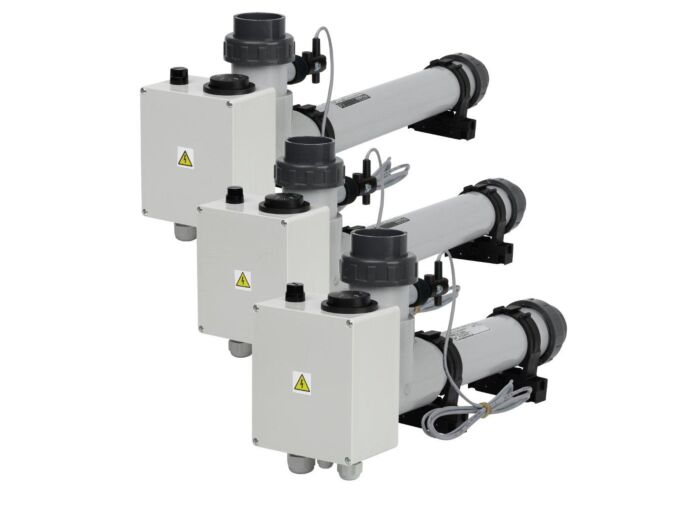

Heating EOVTi-3, 3 kW, 3 x 230 V, Titan with electric flow valve

Electric flow heaters are designed for heating water in pools and hot tubs, and their operation consists of heating the flowing water with a heating element, the temperature of the heated water is regulated by a thermostat. The heating element is switched on by a contactor, which is controlled by the aforementioned thermostat, a flow safety indicator. For this reason, a so-called large automation system is required for heating, including a 24-hour filter timer, a current protector (protection against dangerous touch voltage), motor thermal protection, contactor, and heater switch. The entire heating system is made of stainless steel titan material (for salt water) or plastic.

Pool electric flow water heaters of type EOV, EOVp, EOVk, EOVTi, EOVnTi, and EOVn are specially designed for heating pool water or water in other water circuits with flow and temperature up to 40°C. Each heater must be installed in an electrical system behind a current protector. We therefore recommend supplementing the device with a suitable type of automatic control from VÁGNER company, which reliably ensures not only the desired comfort but also operator safety.

EOVTi electric heating:

• utilizes the conversion of electrical energy into heat energy
• made of high-quality PVC
• equipped with a TITAN heating cartridge. TITAN is the most resistant material to corrosion among available materials
• 100% tested for tightness
• this type of heating is suitable for abnormal stress and higher chlorine concentration. It can be used in combination with any water treatment, especially electro-chemical electrolyzers, etc.
• equipped with a thermostat up to 40°C and thermal fuse
• equipped with a flow switch that controls the water flow
• equipped with 2 holders for easy installation

Operating conditions:

• Minimum water flow rate: 4 m³/h
• Operating pressure: 0-3 bar
• Connection: to water circuit with a pipe diameter of 50 mm
• Water quality: chloride content max. 150 mg/l
• maximum chlorine content 1 mg/l
• pH range 7.0-7.8
