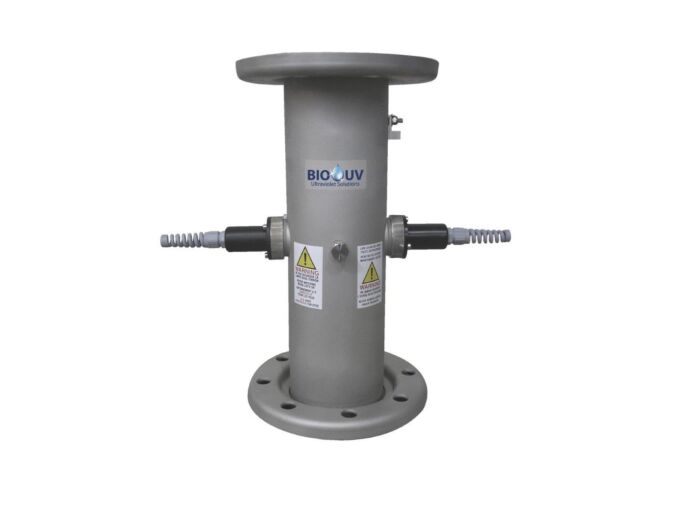

MP 030 EL - Underpressure UV Sterilizer 270 W, DN80

Disinfection with ultraviolet radiation belongs to technologies that are increasingly used to improve the treatment of drinking and pool water. The principle of disinfection is based on the photochemical damage to RNA and DNA, proteins, enzymes, and other biologically significant macromolecules.

The effectiveness of disinfection depends on the UV radiation dose, type of UV lamp used, and their arrangement in relation to the direction of flow of drinking or pool water. To select the appropriate type of UV device, it is necessary to determine and ensure the required UV radiation dose, depending on the flow rate and quality of the water in terms of its transmittance, which is influenced by the concentration and type of dissolved and undissolved substances that affect the reflection and absorption of UV radiation.

The polychromatic underpressure UV lamps emit UV radiation in the range of 185-400 nm, with the intensity of the emitted UV energy not being dependent on temperature and can be operated at various levels depending on the type of UV lamp. The different intensity of the emitted UV energy enables replacing up to 12 low-pressure monochromatic UV lamps with a single highly efficient UV lamp, which utilizes higher intensity of radiation for a shorter period of time. Higher efficiency leads to a reduction in the size of the UV system and its compactness.

The possibility of combining UV radiation with other treatment technologies leads to achieving high water quality. The advantage is a reduction in operating costs, savings in chemical dosing, and safe and easy operation in automatic mode. The disadvantage is the possibility of secondary contamination, so UV radiation itself is not suitable for hygienic purposes. In practice, it is therefore combined, for example, with chlorination.

• Continuous, highly efficient and instantaneous disinfection
• Reduction of chloramines by up to 75%
• More pleasant organoleptic properties of water
• Reactor made of corrosion-resistant materials (stainless steel 316L)
• Protective quartz glass
• Indication of malfunctions and unit status
• Without wiping system
• Reactor equipped with a drain valve, flow sensor
• Lamp lifespan 8,000-10,000 hours
