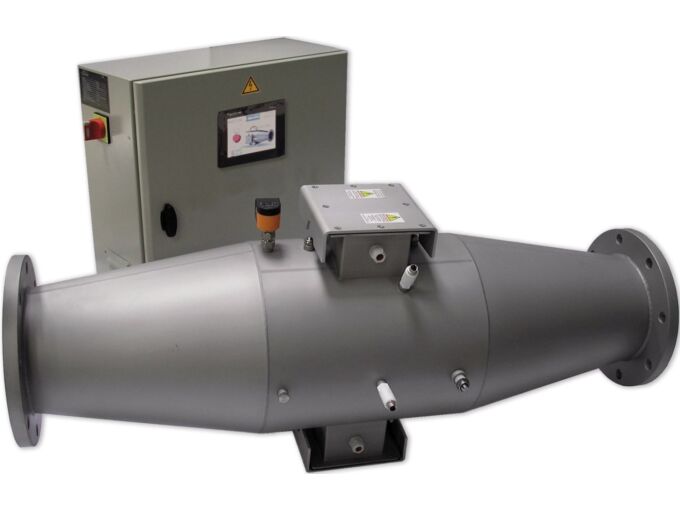

MP 100A TS - Underpressure UV Sterilizer 1 kW, DN125

Disinfection with ultraviolet radiation is among the technologies that are increasingly used to improve the treatment of drinking and pool water. The principle of disinfection involves the photochemical damage of RNA and DNA, proteins, enzymes, or other biologically significant macromolecules.

The efficiency of disinfection depends on the UV dose, type of UV lamp used, and their arrangement in relation to the flow direction of the drinking or pool water. To select the suitable type of UV equipment, it is necessary to determine and ensure the required UV dose, dependent on the flow rate and water quality in terms of its transmittance, i.e., the concentration and type of dissolved and undissolved substances that affect the reflection or absorption of UV radiation.

Polychromatic underpressure UV lamps emit UV radiation at 185-400 nm, with the intensity of the emitted UV energy not being dependent on temperature and can be operated at various levels depending on the type of UV lamp. Due to the different intensity of UV energy, it is possible to replace up to 12 low-pressure monochromatic UV lamps with one highly efficient UV lamp, which utilizes higher intensity radiation for a shorter duration. Greater efficiency leads to a reduction in the size of UV equipment and their compactness.

The possibility of combining UV radiation with other treatment technologies allows achieving high water quality. Advantages include reduced operational requirements, savings in chemical dosing, and safe and easy operation in automatic mode. The disadvantage is the possibility of secondary contamination, so UV radiation alone is not suitable for hygiene purposes. It is therefore often combined with chlorination.

• Continuous, highly efficient, and instant disinfection
• Reduction of up to 75% chloramines
• Improved organoleptic properties of water
• Reactor made of corrosion-resistant materials (stainless steel 316L)
• Protective quartz glass
• Integrated operation hours and switch-on count meter
• Indication of faults and unit status
• No / manual / automatic wiping system
• Reactor equipped with drain valve, flow, temperature, UVC sensor, and potentially with wiper sensor
• Automatic power regulation - extended lifespan
• Lamp life 8,000 - 12,000 hours
• Possibility to transfer data to PC (4-20mV output)
