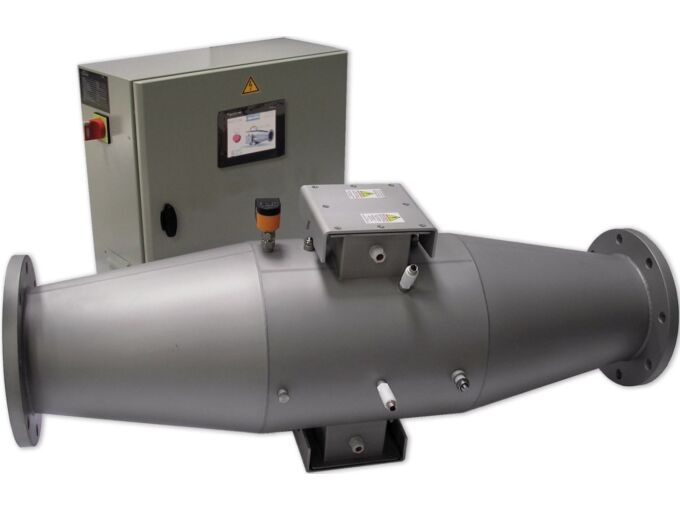

MP 140A TS - Vacuum UV Sterilizer 3 kW, DN200

Disinfection with ultraviolet radiation is one of the technologies that are increasingly used to improve the treatment of drinking and pool water. The disinfection process involves the photochemical damage to RNA and DNA, proteins, enzymes, and other biologically significant macromolecules.

The effectiveness of disinfection depends on the dose of UV radiation, the type of UV lamp used, and their arrangement with respect to the flow direction of the drinking or pool water. To select the appropriate type of UV device, it is necessary to determine and ensure the required dose of UV radiation, which depends on the flow rate and the quality of water in terms of its transmittance, i.e. the concentration and type of dissolved and undissolved substances that affect the reflection and absorption of UV radiation.

Polychromatic vacuum UV lamps emit UV radiation at 185-400 nm, with the intensity of the emitted UV energy being independent of temperature and can be operated at different levels depending on the type of UV lamp. The different intensity of UV energy emitted by the lamp results in the ability to replace up to 12 low-pressure monochromatic UV lamps with a single highly effective UV lamp, which utilizes higher intensity radiation for a shorter period of time. This higher efficiency leads to a smaller size and compactness of the UV device.

Combining UV radiation with other treatment technologies results in high water quality. Advantages include reduced operational requirements, savings in dosed chemicals, and safe and easy operation in automatic mode. The disadvantage is the possibility of secondary contamination, so UV disinfection alone is not suitable for hygiene purposes. In practice, it is therefore combined, for example, with chlorination.

• Continuous, highly effective, and instantaneous disinfection
• Reduction of chloramines by up to 75%
• Improved organoleptic properties of water
• Reactor made of corrosion-resistant materials (stainless steel 316L)
• Protective quartz glass
• Integrated operating hour and on/off counter
• Indication of faults and status of the entire unit
• Color touch screen
• Manual / automatic cleaning system
• Reactor equipped with drain valve, flow, temperature, UVC sensor and optionally a wiper sensor
• Automatic power regulation -- extended lifespan
• Lamp life of 8,000 - 12,000 hours
• Data transfer to PC possible (4-20mV output)
