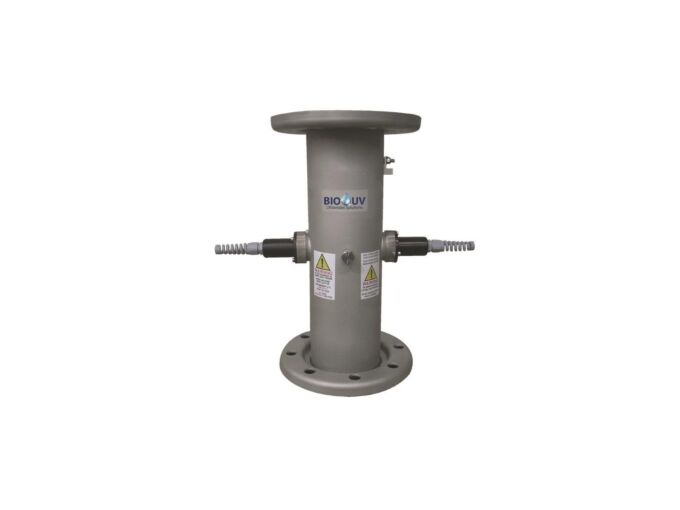

MPL 030 EL - Vacuum Sterilizer 600 W, DN100

Disinfection by ultraviolet radiation is a technology that is increasingly used to improve the treatment of drinking and pool water. The principle of disinfection is based on the photochemical damage to RNA and DNA, proteins, enzymes, and other biologically significant macromolecules.

The effectiveness of disinfection depends on the dose of UV radiation, the type of UV lamp used, and their arrangement in relation to the direction of flow of drinking or pool water. To select the appropriate type of UV equipment, it is necessary to determine and guarantee the required dose of UV radiation, depending on the flow rate and water quality in terms of its permeability, i.e., the concentration and type of soluble and insoluble substances that affect the reflection or absorption of UV radiation.

Polychromatic vacuum UV lamp types emit UV radiation at 185-400 nm with the characteristic that the intensity of the emitted UV energy is not dependent on temperature and can be operated at various levels depending on the type of UV lamp. The different intensity of emitted UV energy enables to replace up to 12 low-pressure monochromatic UV lamps with one highly efficient UV lamp, which utilizes higher intensity radiation for a shorter period of time. Higher efficiency leads to a reduction in the dimensions of UV equipment and their compactness.

The possibility of combining UV radiation with other treatment technologies leads to achieving high water quality. The advantage is a reduction in operating requirements, the saving of dosed chemicals, and safe and easy operation in automatic mode. The disadvantage is the potential for secondary contamination, so UV radiation itself is not suitable for hygiene purposes. In practice, it is therefore combined, for example, with chlorination.

• Continuous, highly efficient and instantaneous disinfection
• Reduces chloramines by up to 75%
• Improves organoleptic properties of water
• Reactor made of corrosion-resistant materials (316L stainless steel)
• Protective quartz glass
• Indication of malfunctions and unit status
• Without wiping system
• Reactor equipped with a drain valve and flow sensor
• Lamp life 8,000 - 10,000 hours
